| Model | HZ1001 | |
| Rated load capacity | kg | 1000 |
| Countertop dimensions | mm | 610x916 |
| Base dimensions | mm | 585x896 |
| Minimum/maximum height of the countertop | mm | 180/770 |
| Lifting time | s | 15-20 |
| Power parameters | 380v/50Hz, AC1.1KW | |
| Net weight | kg | 115 |
Miniature table top for special size goods
Emergency shop button,up button,down button
Imported high quality pump station for smooth and powerful lifting of goods
Anti-pinch shear fork design to prevent pinching

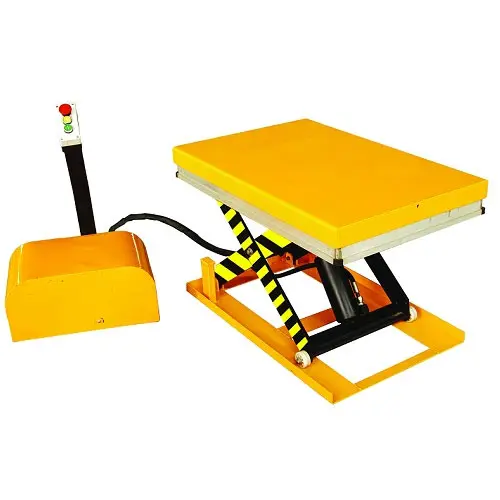

The HZ1001 is designed for lifting and positioning small or special-size goods in workshops, warehouses, repair stations, and industrial applications. It is also suitable for motorcycle maintenance and workstation lifting operations.
The HZ1001 uses an electric hydraulic lifting system with an imported high-quality pump station, providing smooth, stable, and powerful lifting performance.
The lift table is equipped with: Safety gearing device under the platform, anti-pinch scissor fork design, overload protection system, and safety wedge for maintenance. These safety features help improve operational reliability and protect operators during lifting and lowering.
When the platform descends and encounters an obstacle, the safety device underneath the table automatically stops the platform from descending further to ensure safe operation.
The HZ1001 is designed for light to medium-duty industrial lifting applications, especially for compact goods and workstation support.
