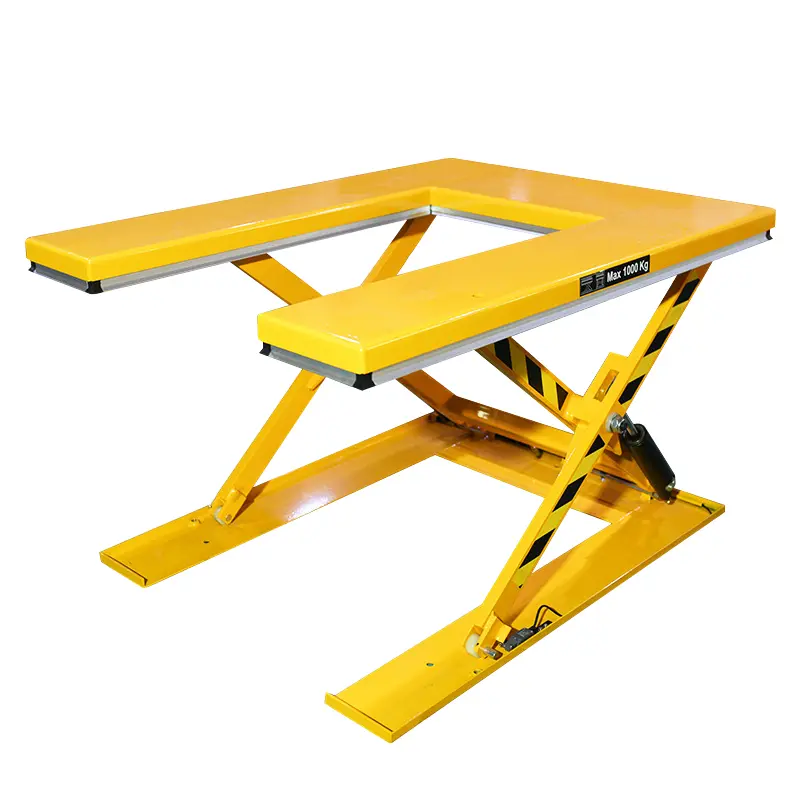

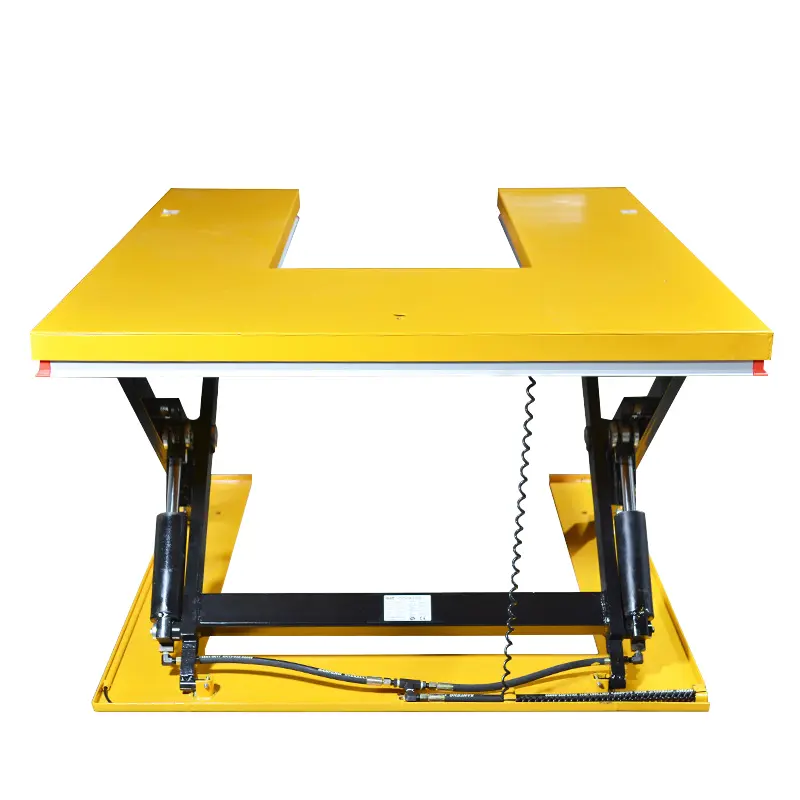

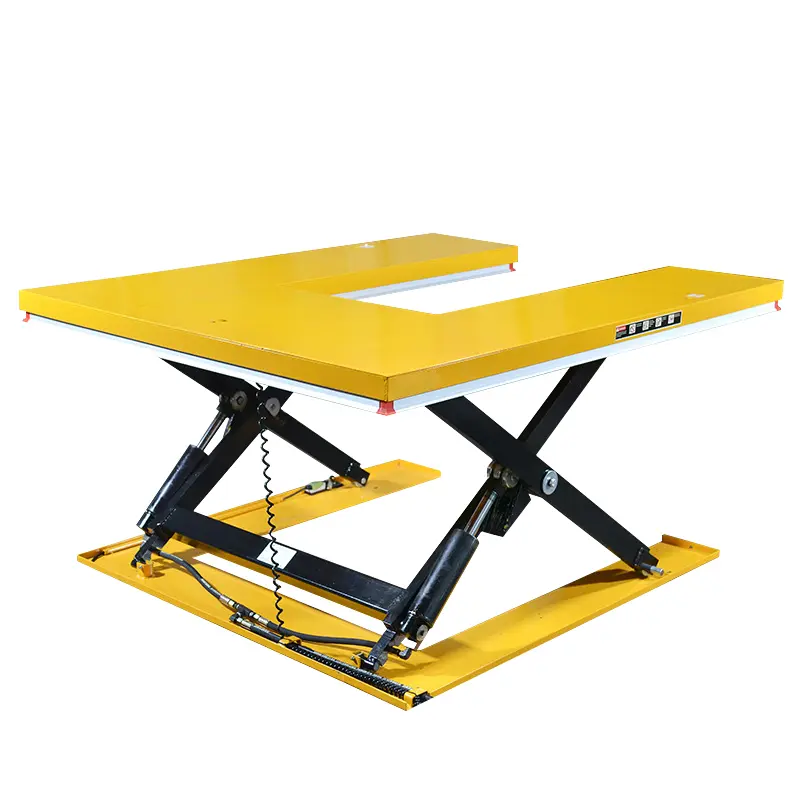

High-Quality Sinolift HU series electric low lift table Suppliers, Service

‘U’ shaped table are especially for handling pallets, no need for a pit or load ramps
Use imported high-quality pumping stations. Stable and powerful lifting
The countertop is equipped with a domestic original safety device to ensure that the countertop will stop falling when encountering obstacles.
Adopt anti-pinch scissor design and overload protection function to provide protection for your safety
Mainly suitable for warehousing, logistics, manufacturing and other occasions to be used with trucks

● Remote power system, easy for controlling , convenient for maintenance
● Electronic controlling box with UP, DOWN & Emergency buttons
● Specially designed in"U" shape for handling pallets and boxes
● Electric controlling system is imported from Europe
● Conforms to EN1570 and BSEN60204-1

Send Inquiry

Product Description

Electric Lifting Platform

Provides comprehensive training and instructional videos on the proper techniques and safety protocols for efficiently managing and transporting materials, ensuring safety and productivity.

Usage: Lift Workers

Warranty: 1 Year

Table Size: 1480x980 mm

Core Component: Motor

Industries: Repair & Construction

After Warranty: Online Support

Technical Parameters

Model / Spec	Unit	EHU600	EHU1000	EHU1500	EHU2000
Capacity	kg	600	1000	1500	2000
Platform Size	mm	1450×985	1450×1140	1600×1180	1600×1180
U-dimension A	mm	200	280	300	300
U-dimension B	mm	1080	1080	1194	1194
U-dimension C	mm	585	580	580	580
Lowered Height	mm	85	85	105	105
Raised Height	mm	860	860	860	860
Lift Time	s	25~35	25~35	30~40	30~40
Power Pack	V/Kw	380/0.75	380/0.75	380/1.5	380/2.2
Net Weight	kg	208	280	380	415

Product Details & Features

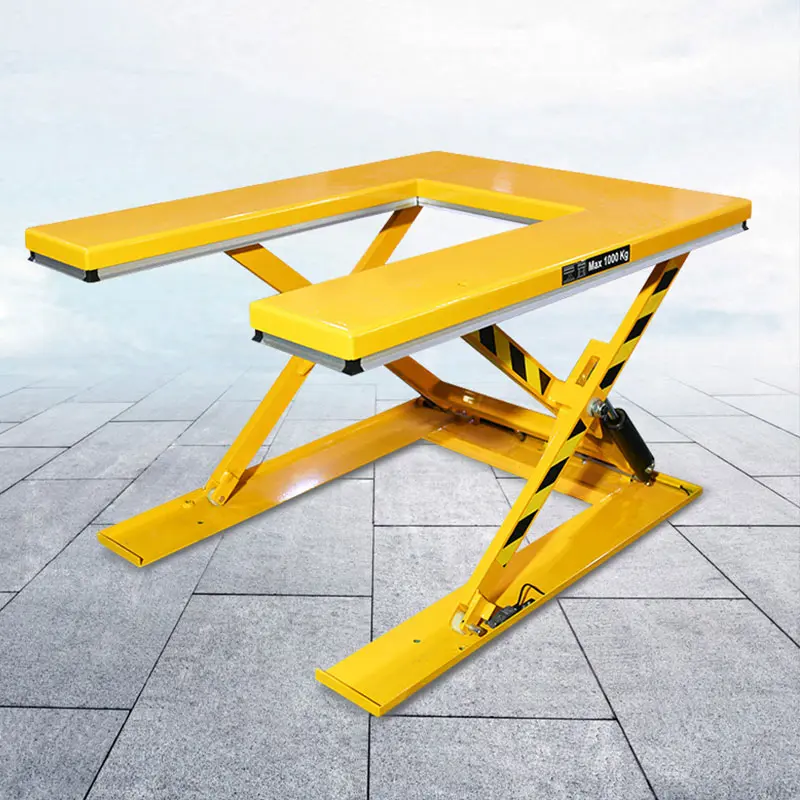

Suitable for pallet loading and unloading with trucks.

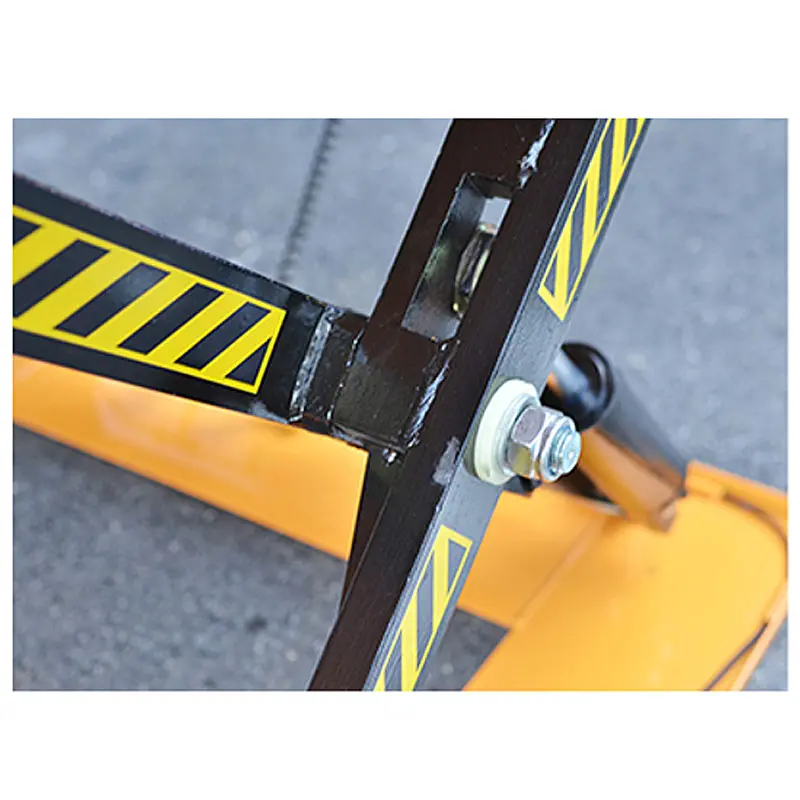

The anti-pinch scissor design prevents pinching and thickens the scissor fork to enhance load capacity.

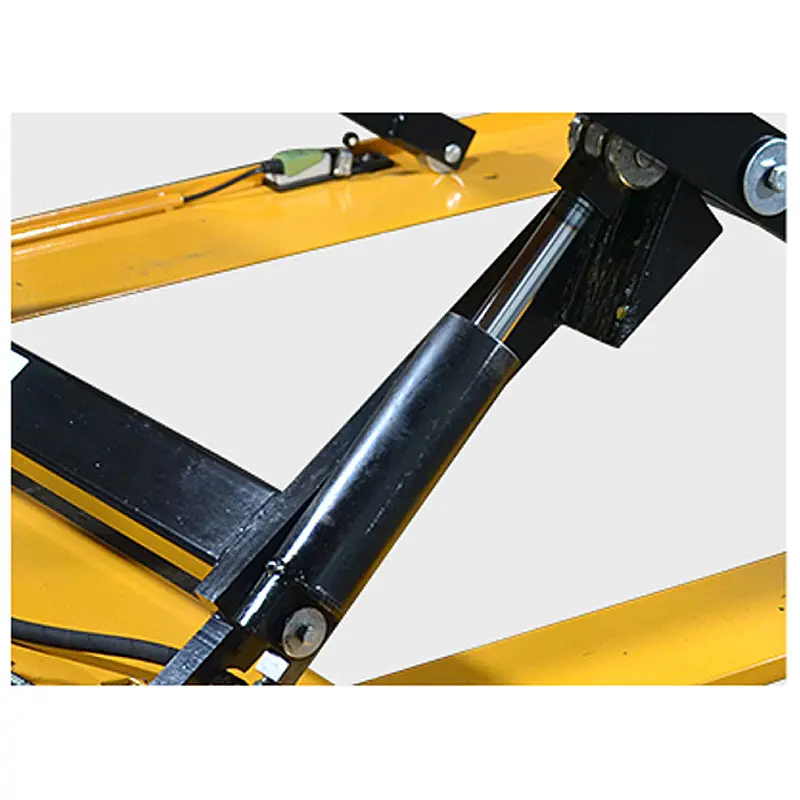

High-quality oil cylinder ensures fast, stable lifting equipped with a pressure-limiting safety valve.

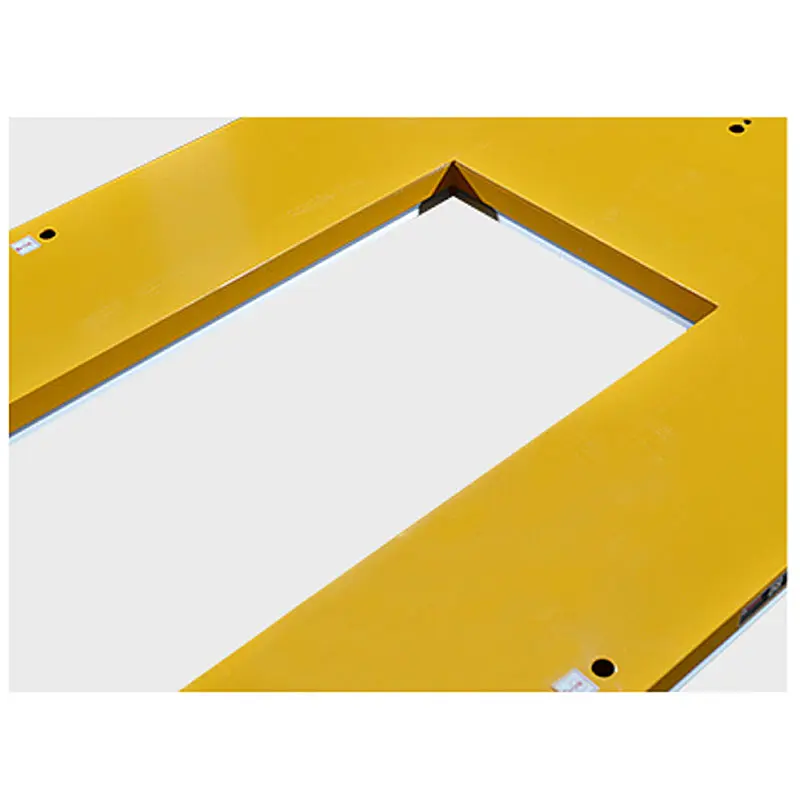

Electrostatic sprayed high-temperature painted surface for enhanced corrosion resistance and durability.

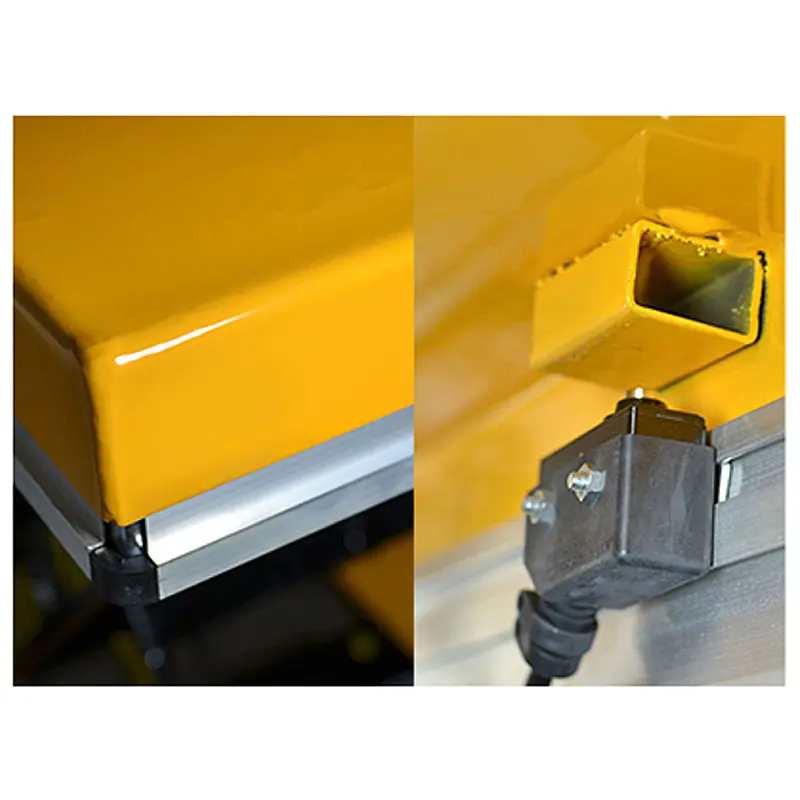

Safety barrier mechanism automatically stops descent when obstacles are encountered beneath the table.

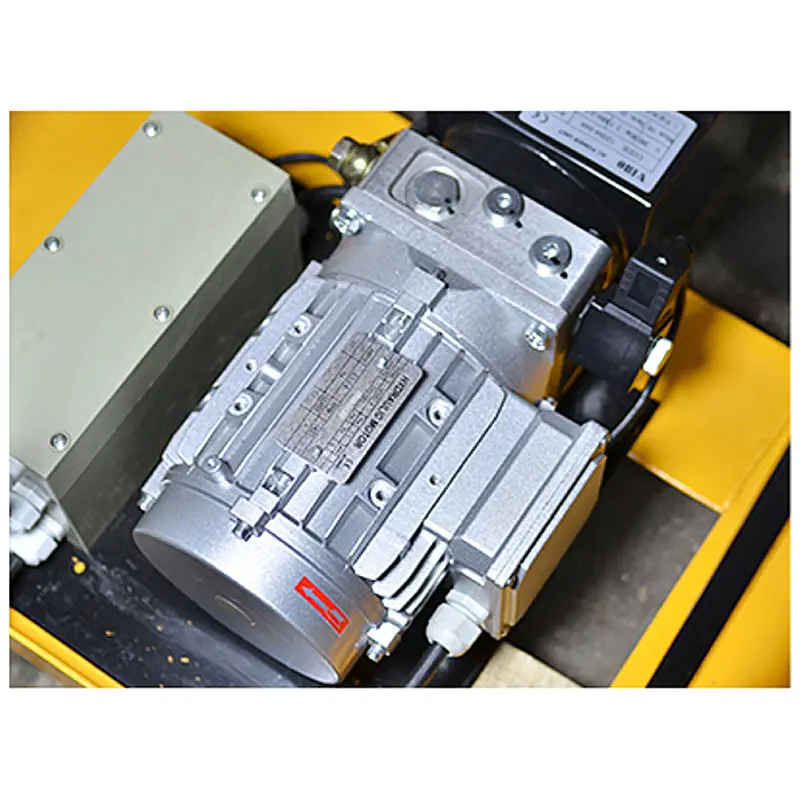

Overload protection device and imported seals effectively prevent overload damage and hydraulic leakage.

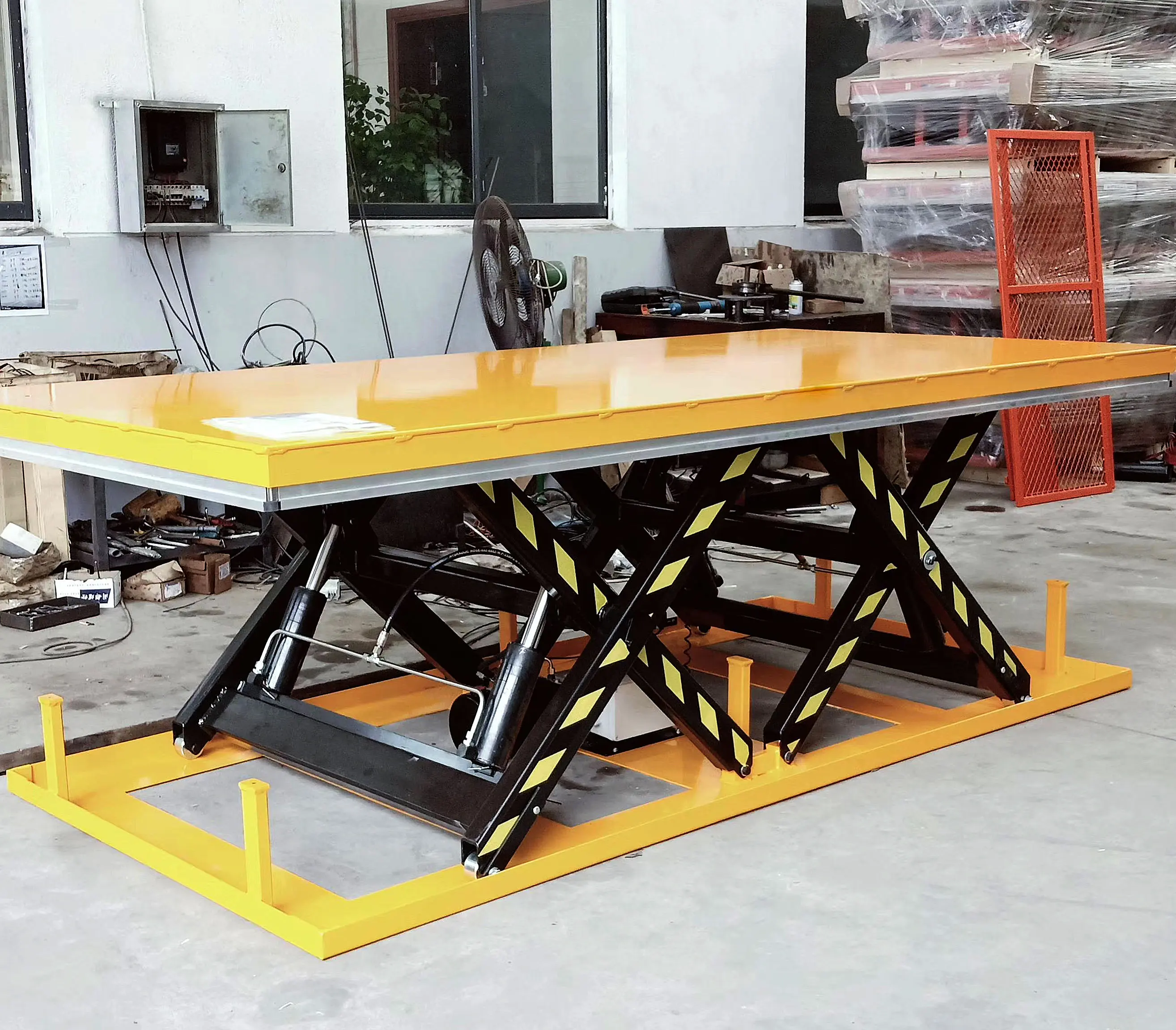

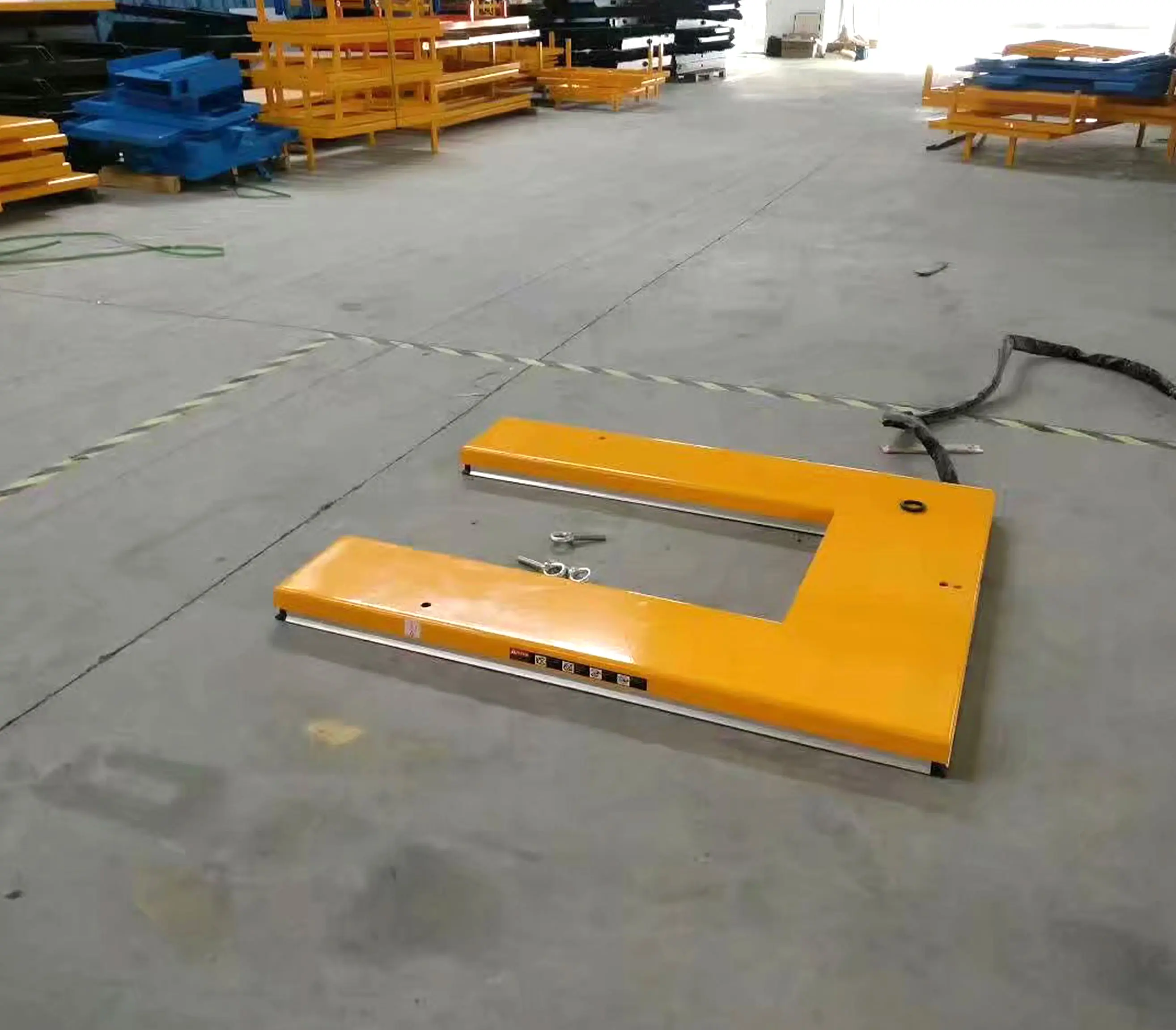

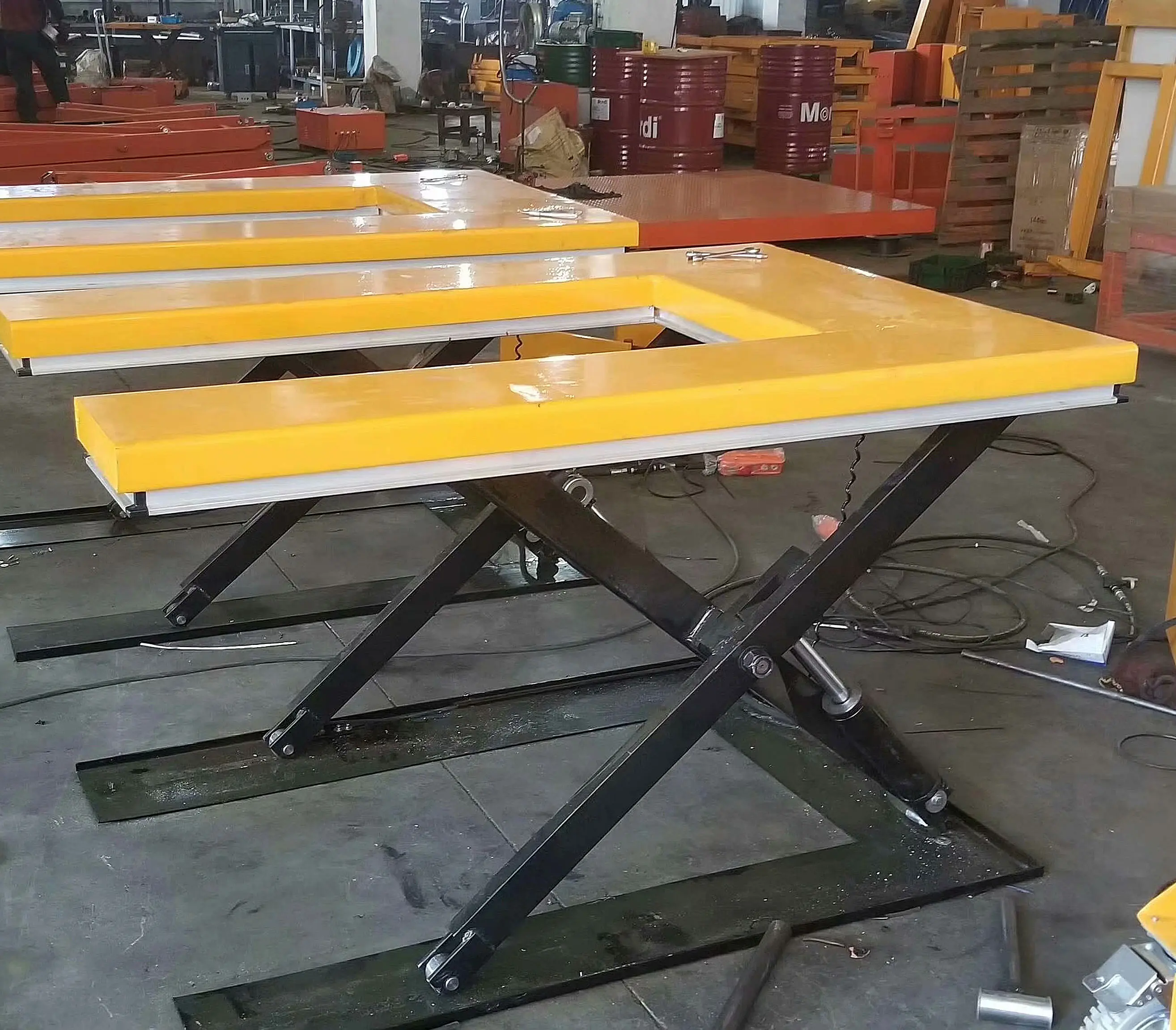

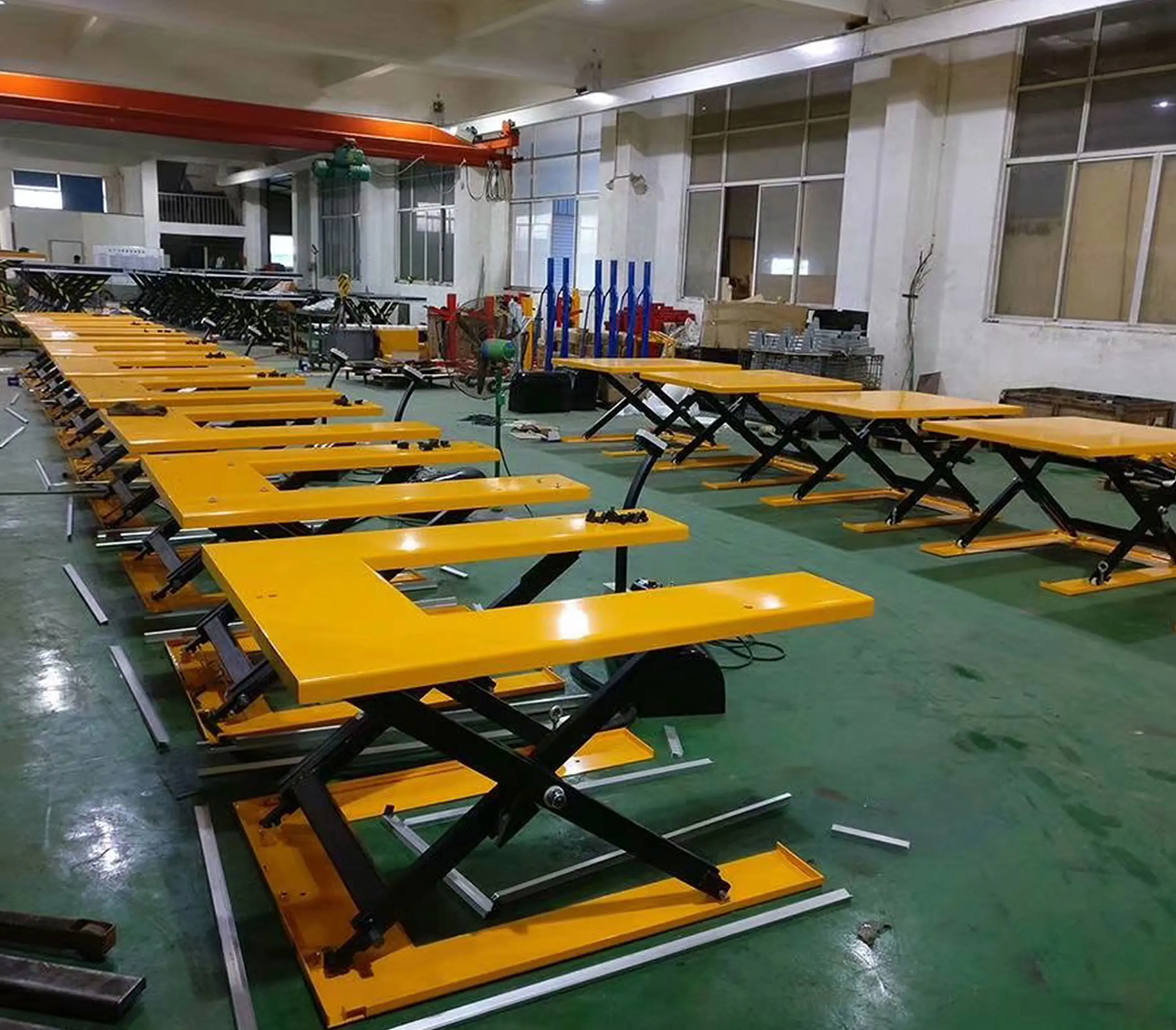

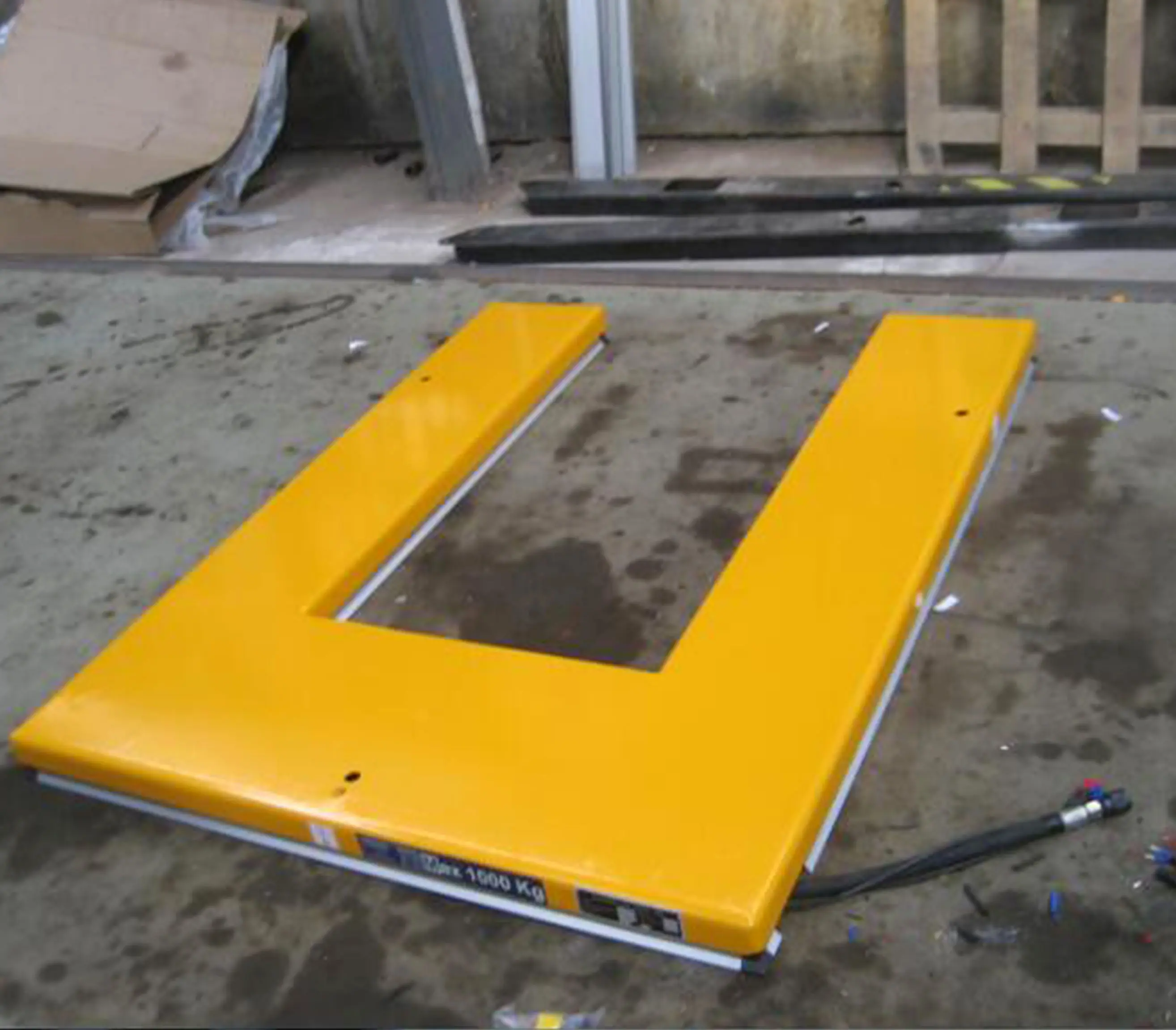

Media Gallery

Optional Extras

T-TUG-HD-DABH

Cart Accessories; For Use With Electric Walkie Tugger

E-TUG-HD-DPINH Double Pin Hitch

Double platforms for different heights
Powder coated black finish
Large vertical area between hitch points
Simple to install/remove

E-TUG-HD-SBH-8 Single Ball Hitch Mount

Powder coated black finish
Simple installation & single ball design
Strong steel construction (8" Length)

Steel Adjustable Double Ball Hitch (SABH)

Attachable ball hitch for electric powered tugs
Durable & robust construction for long term use
Compact design for easy storage & productivity

E-TUG-HD-SLH Self Locking Hitch

Self locking mechanism
Powder coated black finish
Safely secures connected unit in place

E-TUG-HD-SLPINH Spring Loaded Pin Hitch

Extended tongue length to maintain safety distance
Spring loaded design & robust construction
Powder coated black finish

Frequently Asked Questions

What details should be provided when making an inquiry?

We require basic information including load capacity, required lift or travel height, platform dimensions, and local operational voltage.

Can the scissor lift platform be customized?

Yes, we support customized requirements including lift height, load capacity, platform size, color finishes, and specific safety features.

How is the lift elevation controlled?

The lift includes a main control box and panel equipped with UP, DOWN, and STOP buttons. Pressing and holding 'UP' or 'DOWN' operates the lift smoothly.

Are custom engineering solutions offered for special applications?

Yes, our dedicated in-house engineering team provides customized solutions tailored to your unique operational and material handling requirements.

Is installation possible without a dedicated pit?

Yes, the lift can be directly ground-mounted. We can provide a small access ramp upon request. Note that travel height equals lift height in ground installation.

How does an electric hydraulic scissor lift work?

Electric scissor lifts utilize hydraulic fluid powered by an electric motor. When activated, fluid pressure extends the scissor mechanism, smoothly raising the platform under precise control.
