| Model | HD1000 | HD2000 | HD4000 |
| Capacity | 1000 kg | 2000 kg | 4000 kg |
| Platform Size | 820×1300 mm | 850×1300 mm | 1700×1200 mm |
| Base Size | 640×1240 mm | 478×1220 mm | 1600×900 mm |
| Min./Max. Height | 305/1700 mm | 360/1780 mm | 400/2050 mm |
| Lifting Time | 35–45 s | 35–45 s | 55–65 s |
| Power Supply | 380V/50Hz AC 2.2KW | 380V/50Hz AC 2.2KW | 380V/50Hz AC 2.2KW |
| Net Weight | 210 kg | 295 kg | 520 kg |

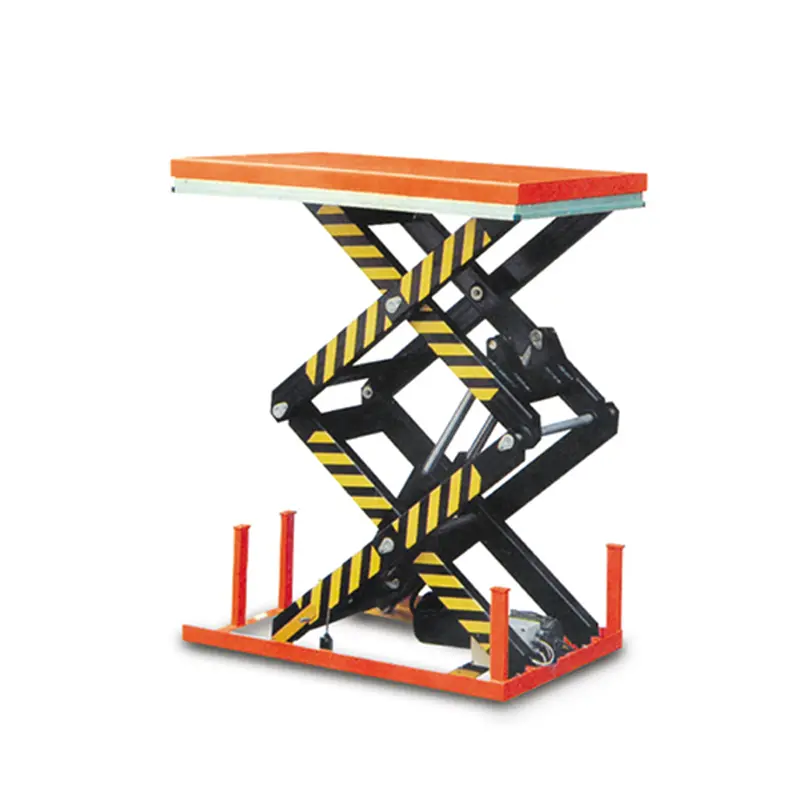

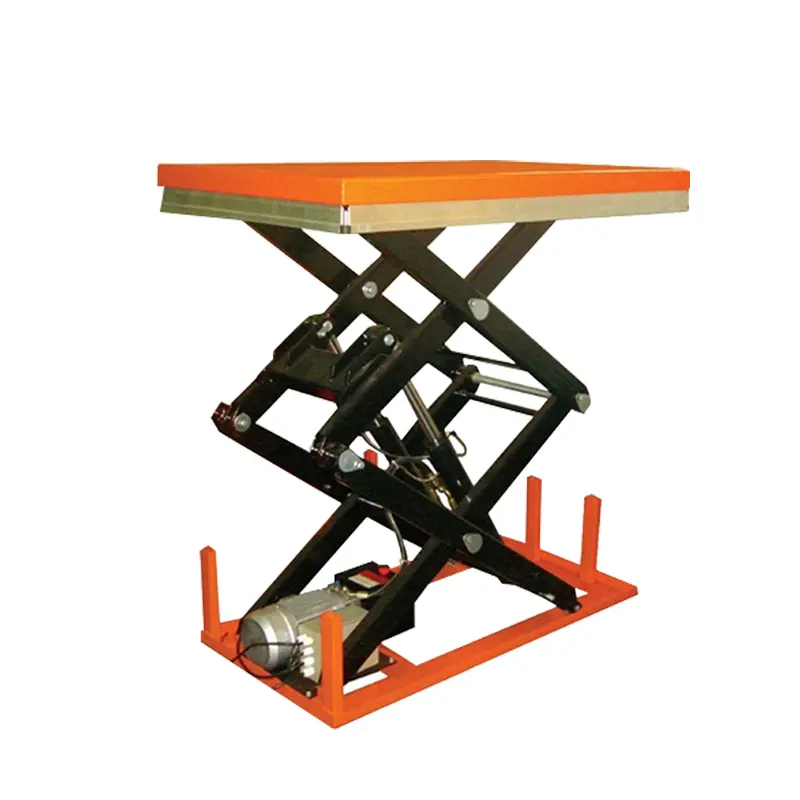

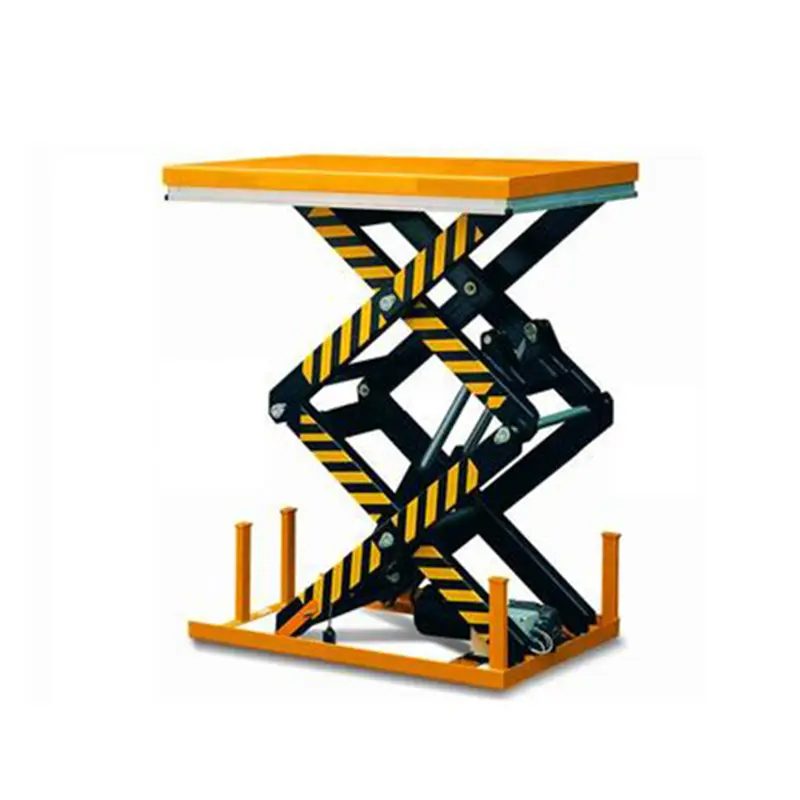

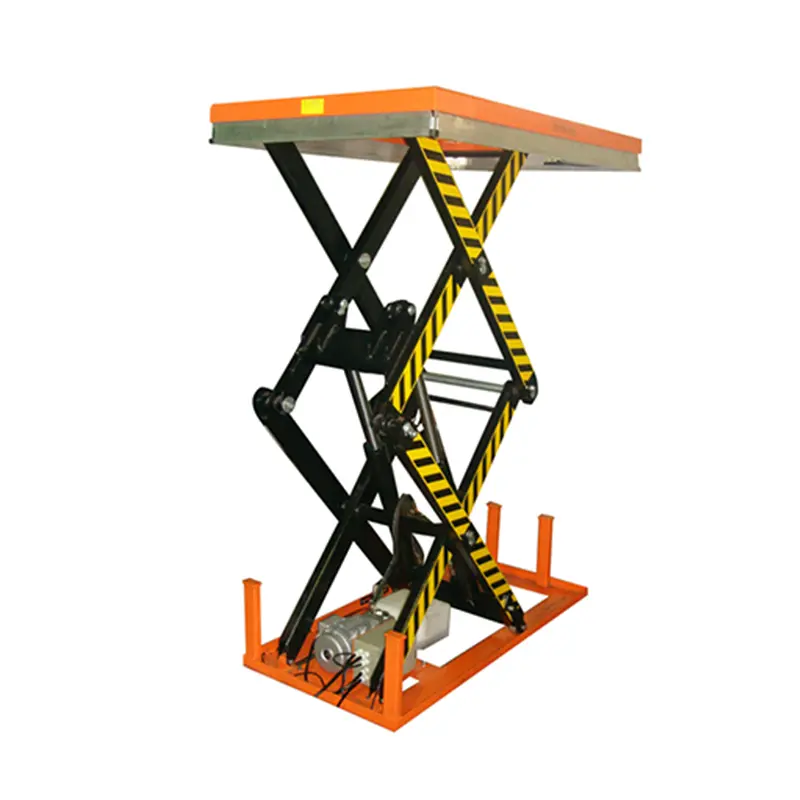

The HD double scissors lift table is widely used in warehouses, factories, logistics centers, assembly workshops, maintenance stations, and industrial production lines for lifting and positioning heavy materials.
The HD series offers capacities from 1000 kg up to 4000 kg depending on the model selected.

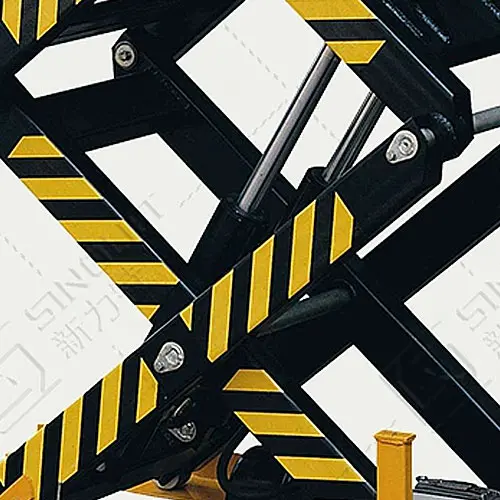

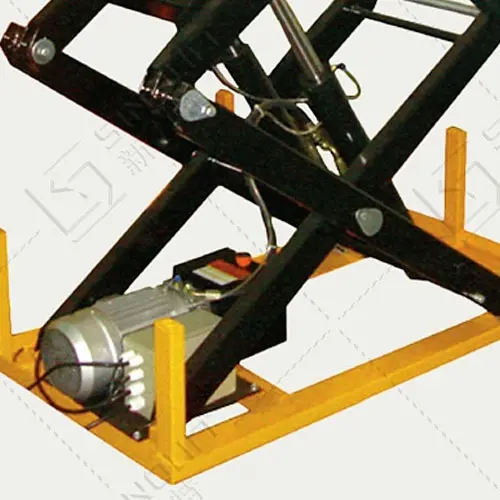

The platform uses a 380V / 50Hz AC power supply with a high-quality hydraulic power unit.

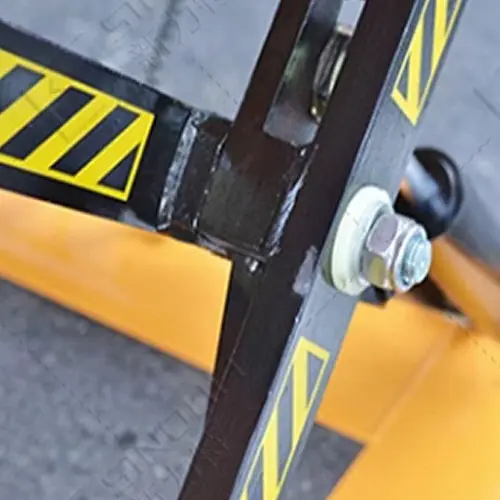

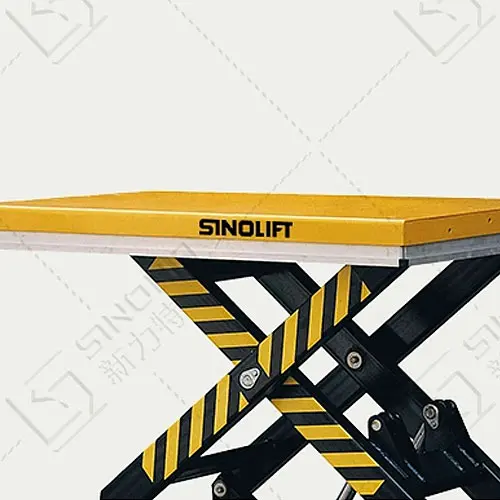

The lift table is equipped with anti-clamping protection, overload protection, safety barrier strip, maintenance safety wedge block, and stable hydraulic lowering control to ensure operational safety.
Yes. Platform size, lifting height, load capacity, voltage, and control systems can usually be customized according to specific requirements.
Yes. The HD series complies with European EN1757-2 standards and ANSI/ASME safety standards.
