The HL Series Low Profile Electric Load and Unloading Lift Table is designed for efficient pallet handling, cargo loading, and industrial material lifting in warehouses, logistics centers, factories, and production lines.

Featuring a low-profile design, the platform eliminates the need for pit installation, making loading and unloading operations easier and more convenient. The heavy-duty steel structure and large platform provide stable lifting performance for pallets and heavy goods.

Send Inquiry

Product Description

Low-profile design without pit installation
Heavy-duty steel platform structure
Smooth hydraulic lifting performance
Electric hydraulic lifting system
Large platform for pallet handling
Safety perimeter strip protection
Overload protection valve
Hose burst safety valve
Anti-pinch scissor structure
24V control box with emergency stop
Standard loading ramp included
Stable and reliable lifting operation
Easy installation and maintenance
Conforms to EN1570:1999 safety standards

Parameters

Model HL500 HL750 HL1000 HL1500
Capacity (kg) 500 750 1000 1500
Max. height H(mm) 810 810 810 810
Min. height h(mm) 35 35 35 35
Platform L×W(mm) 1270x1100 1270x1100 1270x1100 1270x1100
Lifting Time (second) 25~35 25~35 25~35 25~35
Power Pack (KW) 380V/50Hz, AC0.75KW 380V/50Hz, AC0.75KW 380V/50Hz, AC0.75KW 380V/50Hz, AC1.5KW
Net Weight (kg) 207 250 280 380

Product Details

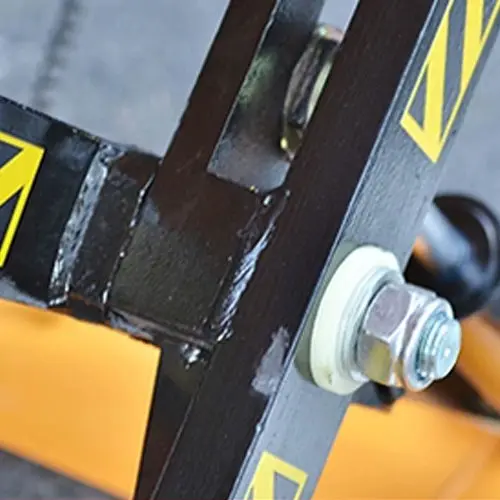

Thicken scissor fork
01 Prevent pinching and thicken the scissor fork and enhance the bearing capacity
Anti-pinch scissor design
02 Anti-pinch scissor design

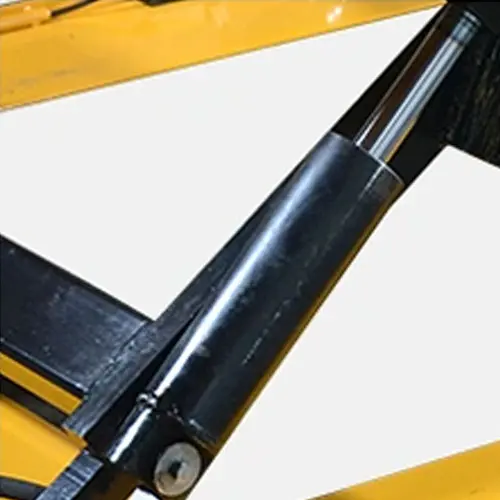

High quality oil cylinder
03 High quality oil cylinder
Upgraded thickened paint countertop
04 Upgraded thickened paint countertop

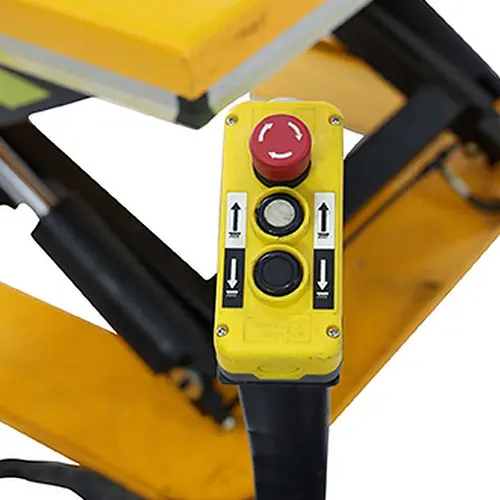

Control panel power switch
05 Control panel power switch lifts and controls
High temperature painted countertops
06 The countertops are all painted at high temperature

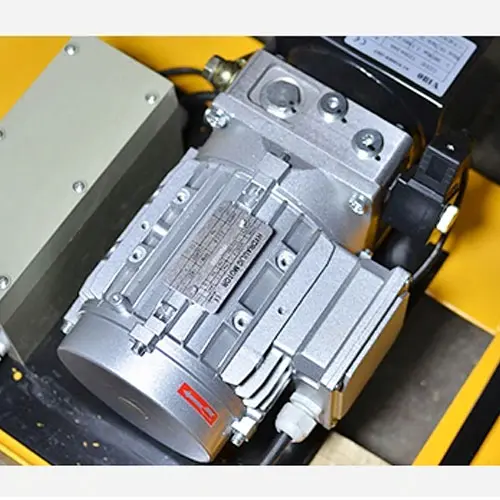

Imported seals overload protection
07 Imported seals equipped with overload protection device

Media Gallery

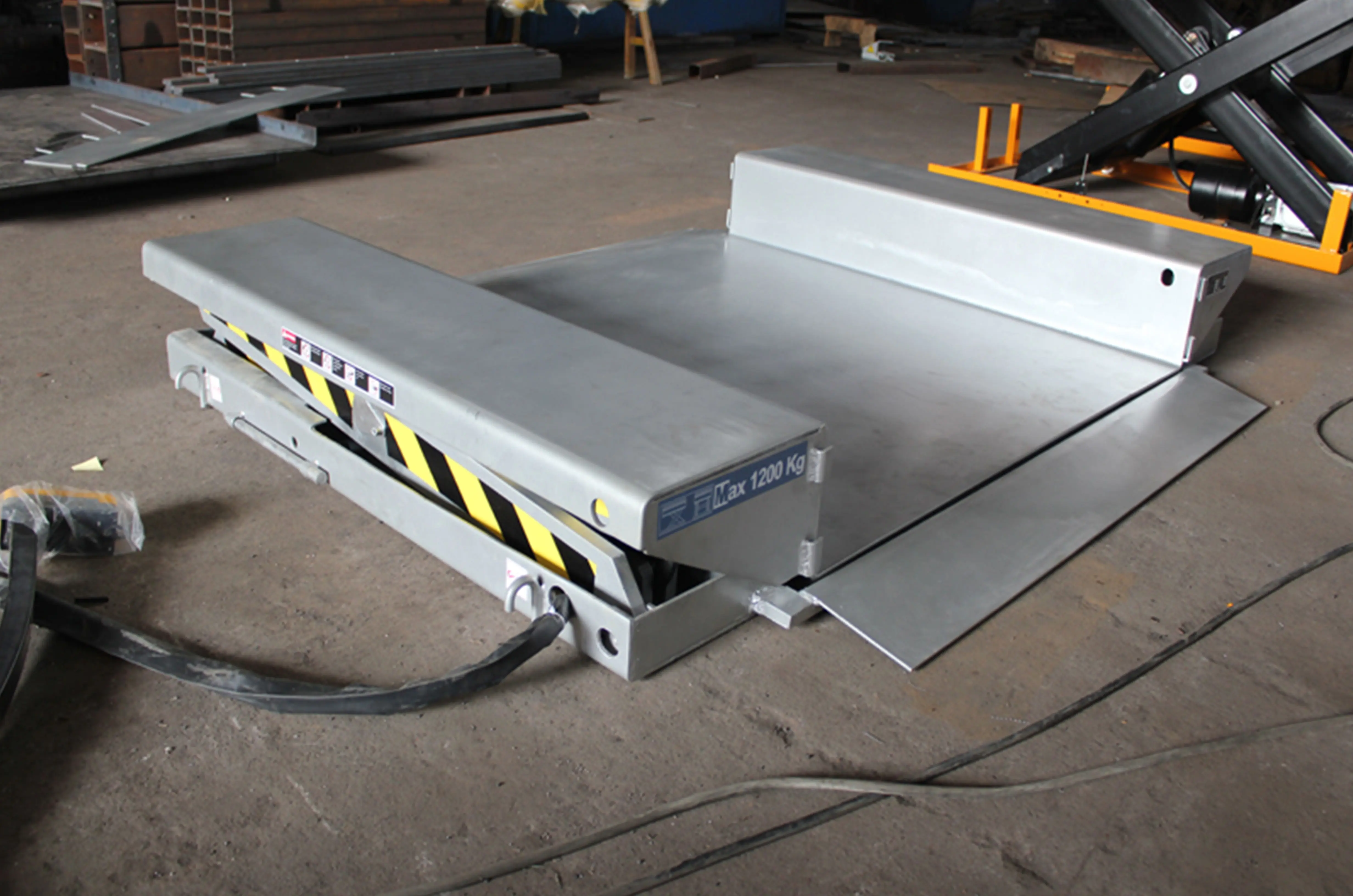

Low profile scissor lift table gallery 1

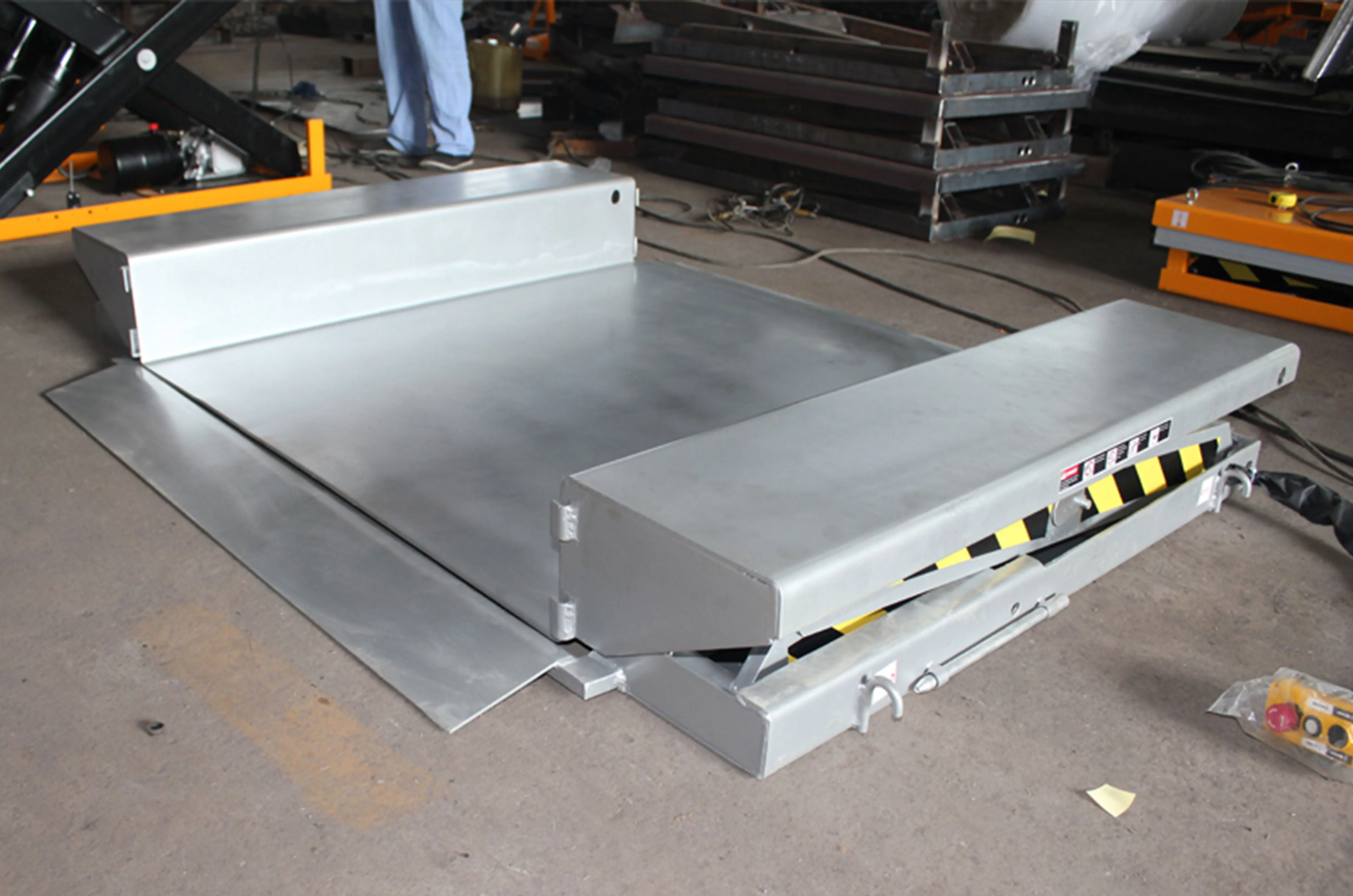

Low profile scissor lift table gallery 2

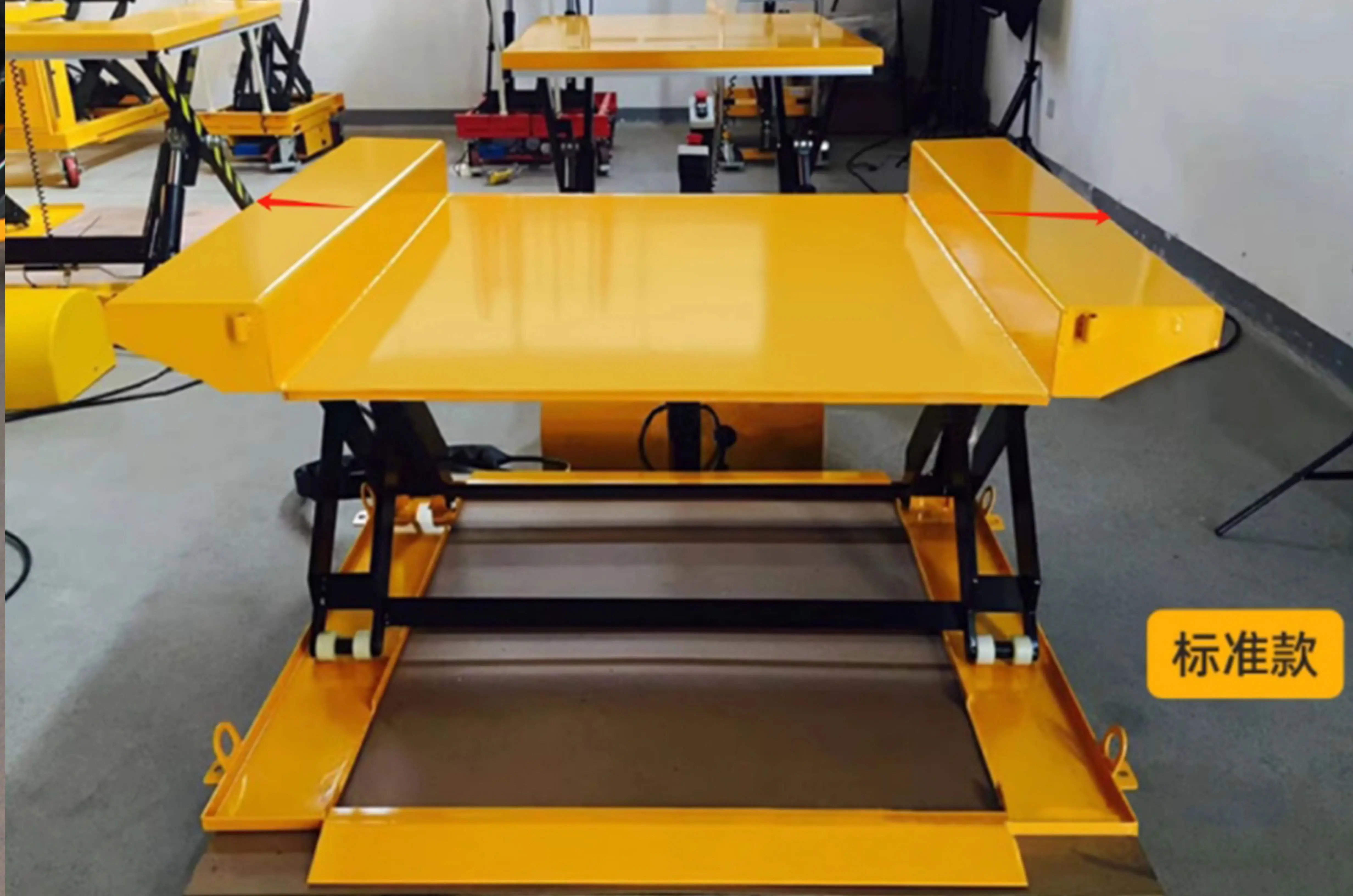

Low profile scissor lift table gallery 3

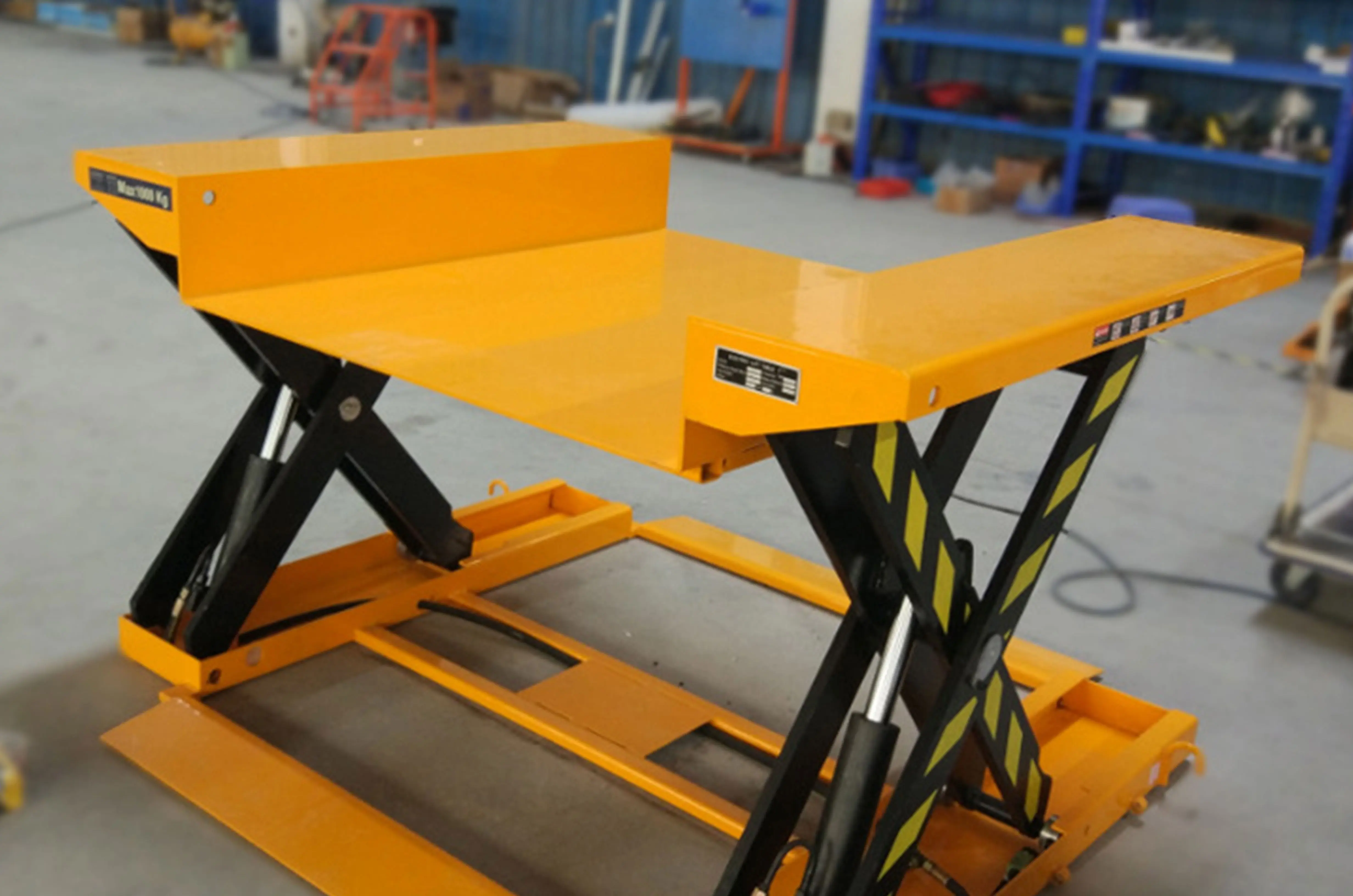

Low profile scissor lift table gallery 4

Frequently Asked Questions

1. What is the HL Low Profile Lift Table used for?
The HL Series is mainly used for pallet handling, cargo loading and unloading, warehouse operations, and industrial material lifting applications.
2. What is the advantage of the low-profile design?
The low-profile structure allows easy pallet truck access without requiring pit installation, making operation more convenient and efficient.
3. What safety features are included?
The lift table is equipped with:
• Safety perimeter strip
• Overload protection
• Hose burst safety valve
• Emergency stop control
• Anti-pinch scissor structure
These features help ensure safe lifting and lowering operations.
4. Is the loading ramp included?
Yes. The loading ramp is supplied as standard equipment for easy pallet loading and unloading.
5. Does the HL Series comply with international safety standards?
Yes. The HL Series conforms to European EN1570:1999 safety standards for industrial lifting equipment.
