| Model | Capacity (kg) | Raised Height (mm) | Min Height (mm) | Max Height (mm) | Platform Size (mm) | Lifting Time (s) | Power (kW) | N.W (kg) |
|---|---|---|---|---|---|---|---|---|
| QSJT0.5-3 | 500 | 3000 | 700 | 3700 | 1800×1200 | 40 | 2.2 | 790 |
| QSJT0.5-4 | 500 | 4000 | 750 | 4750 | 2300×1200 | 42 | 3.0 | 1020 |
| QSJT0.5-6 | 500 | 6000 | 750 | 6750 | 2300×1200 | 80 | 3.0 | 1360 |
| QSJT0.5-7.5 | 500 | 7500 | 870 | 8370 | 2300×1200 | 80 | 3.0 | 1530 |
| QSJT0.5-9 | 500 | 9000 | 1000 | 10000 | 2300×1200 | 80 | 3.0 | 1700 |

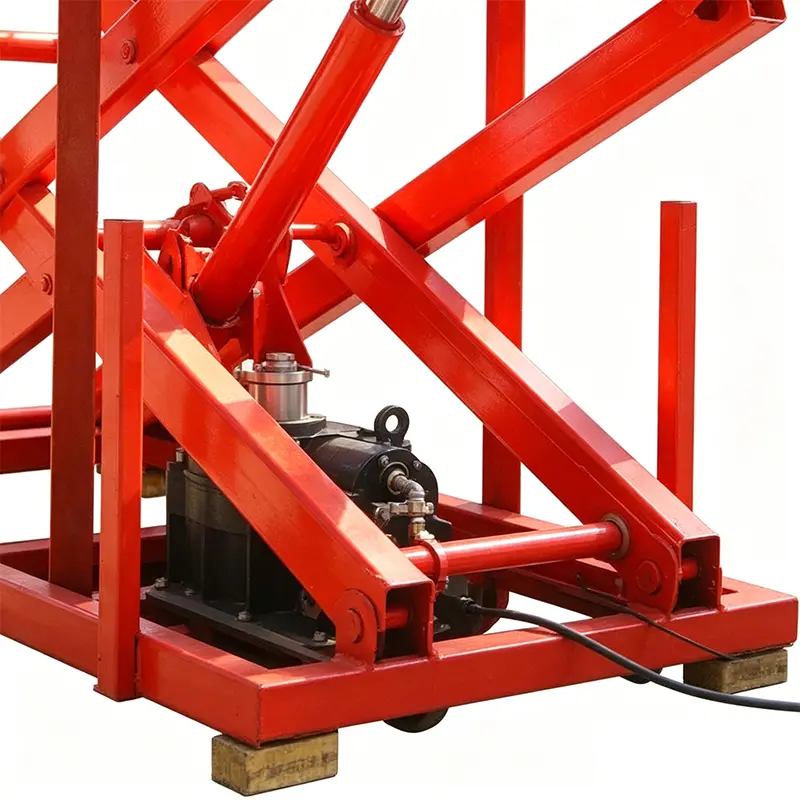

A compact electro-hydraulic pump station designed for high efficiency and consistent power delivery.

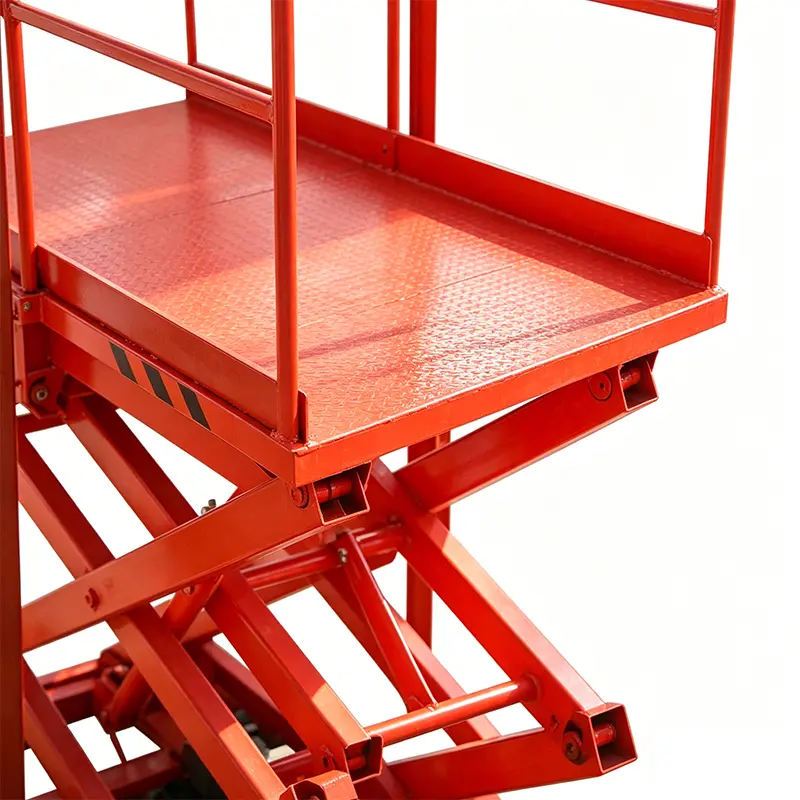

Platform & Enclosure: Features a heavy-duty steel platform capable of handling intense cargo loads.

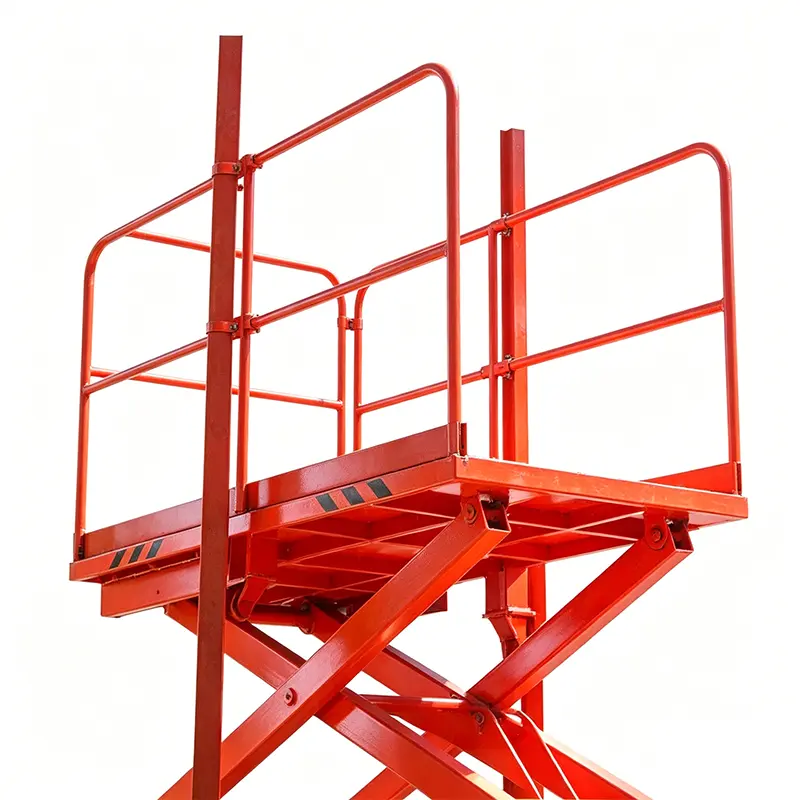

Safety guardrails mounted on the sides to prevent goods or operators from falling during lifting operations.

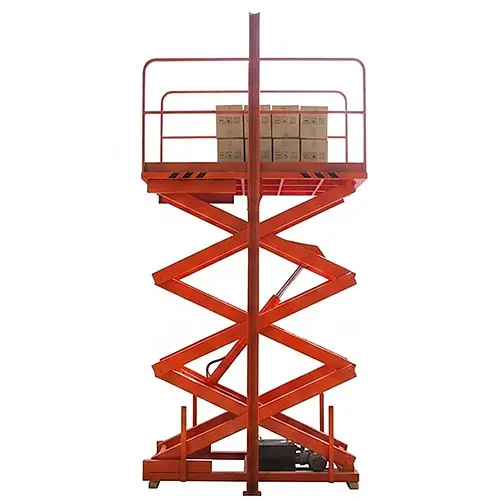

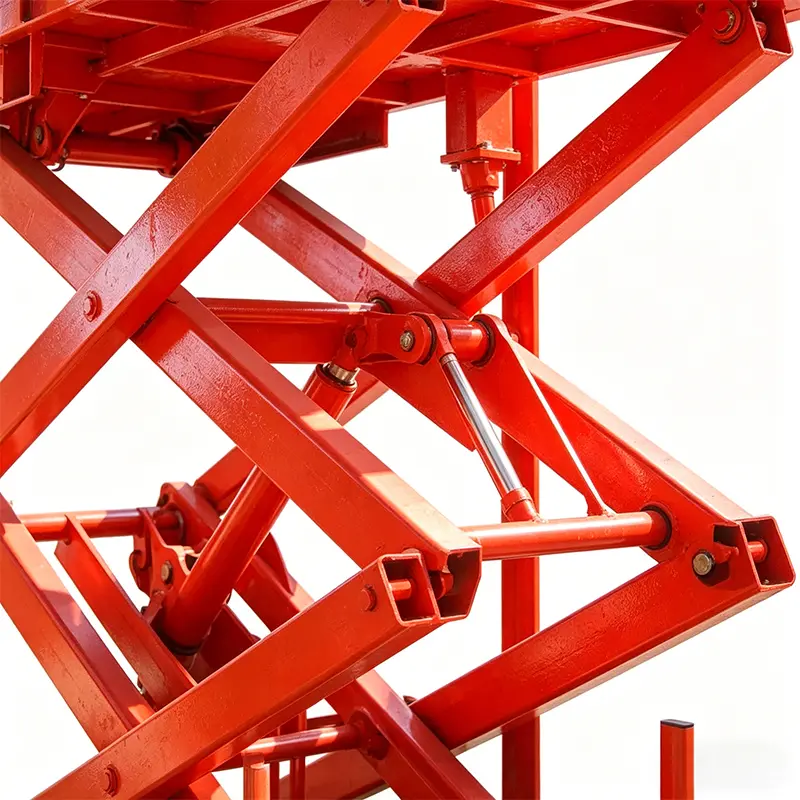

Scissor Mechanism: Utilizes a robust multi-stage (4-tier) scissor arm design for optimal vertical stability.
It is mainly used for heavy lifting, loading, unloading, precise positioning, and industrial material handling operations across warehouses and factories.
Yes. Platform dimensions, lifting height, load capacity, color, guardrails, and control systems can all be tailored to match your specific engineering needs.
The platform supports a wide range of standard load capacities from 0.3 tons up to 50 tons depending on the structural design selected.
Safety measures include overload protection, anti-trapping safety clearances, bottom aluminum safety bars, emergency lowering valves, and hydraulic hose burst protection.
Yes. Explosion-proof electrical control boxes and hydraulic components can be customized for chemical plants and other high-risk industrial environments.
Lifting time varies between 40 to 80 seconds depending on the configured model, total raised height, and motor output capacity.
