| Model | Capacity (kg) | Min/Max Height (mm) | Platform Size (mm) | Base Size (mm) | Lift Time (s) | Power Unit (V/HZ/KW) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| HW1001S | 1000 | 205/990 | 820×1300 | 640×1240 | 20–25 | 380V/50HZ 1.1KW | 160 |
| HW1002S | 1000 | 205/990 | 1000×1600 | 640×1240 | 20–25 | 380V/50HZ 1.1KW | 186 |
| HW1003S | 1000 | 240/1300 | 850×1700 | 640×1580 | 30–35 | 380V/50HZ 1.1KW | 200 |
| HW1004S | 1000 | 240/1300 | 1000×1700 | 640×1580 | 30–35 | 380V/50HZ 1.1KW | 210 |
| HW1005S | 1000 | 240/1300 | 850×2000 | 640×1580 | 30–35 | 380V/50HZ 1.1KW | 212 |
| HW1006S | 1000 | 240/1300 | 1000×2000 | 640×1580 | 30–35 | 380V/50HZ 1.1KW | 223 |
| HW2001S | 2000 | 230/1000 | 850×1300 | 785×1220 | 20–25 | 380V/50HZ AC 2.2KW | 235 |
| HW2002S | 2000 | 230/1000 | 1000×1600 | 785×1220 | 20–25 | 380V/50HZ AC 2.2KW | 268 |
| HW2003S | 2000 | 250/1300 | 850×1700 | 785×1600 | 25–35 | 380V/50HZ AC 2.2KW | 289 |
| HW2004S | 2000 | 250/1300 | 1000×1700 | 785×1600 | 25–35 | 380V/50HZ AC 2.2KW | 300 |
| HW2005S | 2000 | 250/1300 | 850×2000 | 785×1600 | 25–35 | 380V/50HZ AC 2.2KW | 300 |
| HW2006S | 2000 | 250/1300 | 1000×2000 | 785×1600 | 25–35 | 380V/50HZ AC 2.2KW | 315 |
| HW4001S | 4000 | 240/1050 | 1200×1700 | 900×1600 | 30–40 | 380V/50HZ AC 2.2KW | 375 |
| HW4002S | 4000 | 240/1050 | 1200×2000 | 900×1600 | 30–40 | 380V/50HZ AC 2.2KW | 405 |
| HW4003S | 4000 | 300/1400 | 1000×2000 | 900×2000 | 45–50 | 380V/50HZ AC 2.2KW | 470 |
| HW4004S | 4000 | 300/1400 | 1200×2000 | 900×2000 | 45–50 | 380V/50HZ AC 2.2KW | 490 |
| HW4005S | 4000 | 300/1400 | 1000×2200 | 900×2000 | 45–50 | 380V/50HZ AC 2.2KW | 480 |
| HW4006S | 4000 | 300/1400 | 1200×2200 | 900×2000 | 45–50 | 380V/50HZ AC 2.2KW | 505 |
| HW4007S | 4000 | 350/1300 | 1700×1500 | 1620×1400 | 35–45 | 380V/50HZ AC 2.2KW | 570 |
| HW4008S | 4000 | 350/1300 | 2200×1800 | 1620×1400 | 35–45 | 380V/50HZ AC 2.2KW | 655 |

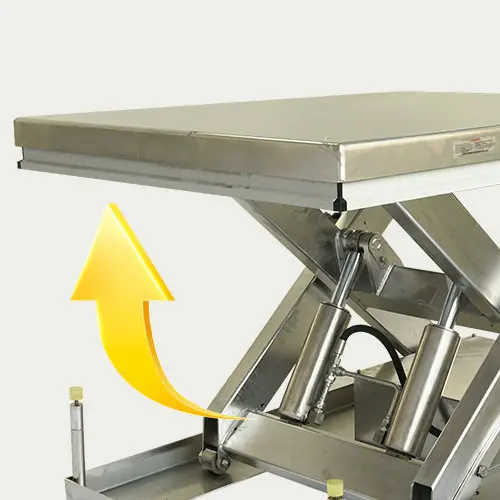

Heavy Load Capacity · High Lifting Height

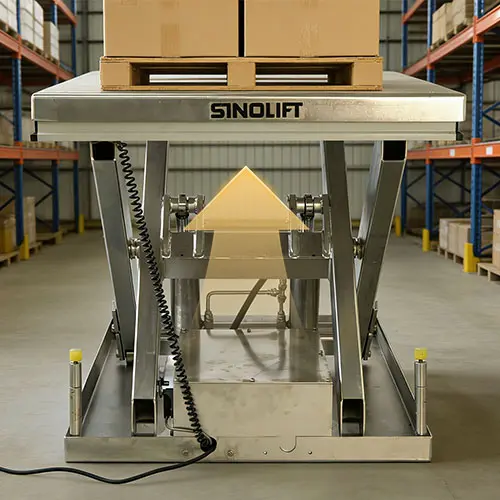

Electric lifting with powerful motor

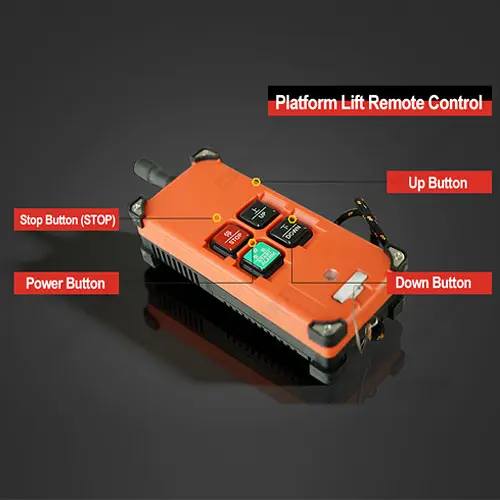

Platform lift remote control, stop button, power button, up button, down button

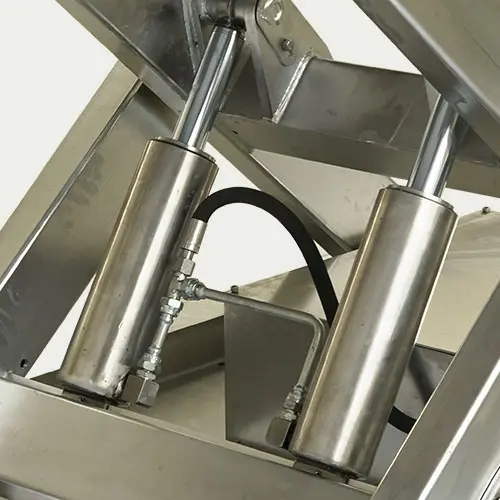

Dual stainless steel cylinders, sealed & leak-proof

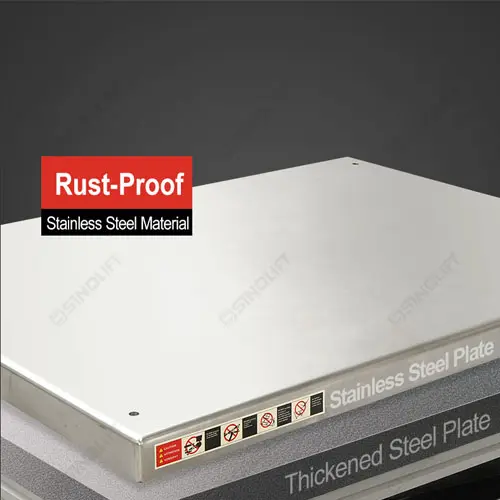

304 stainless steel tabletop corrosion resistant

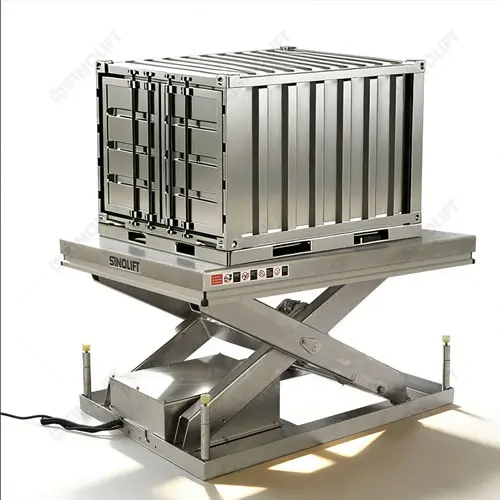

Fixed scissor lift

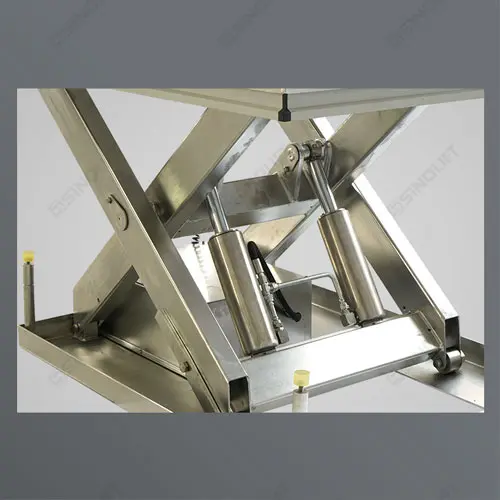

Thickened scissors
Stainless steel rollers

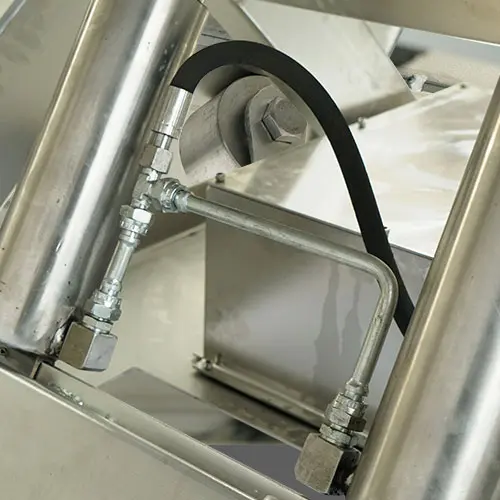

High-pressure oil hose
Limit switch

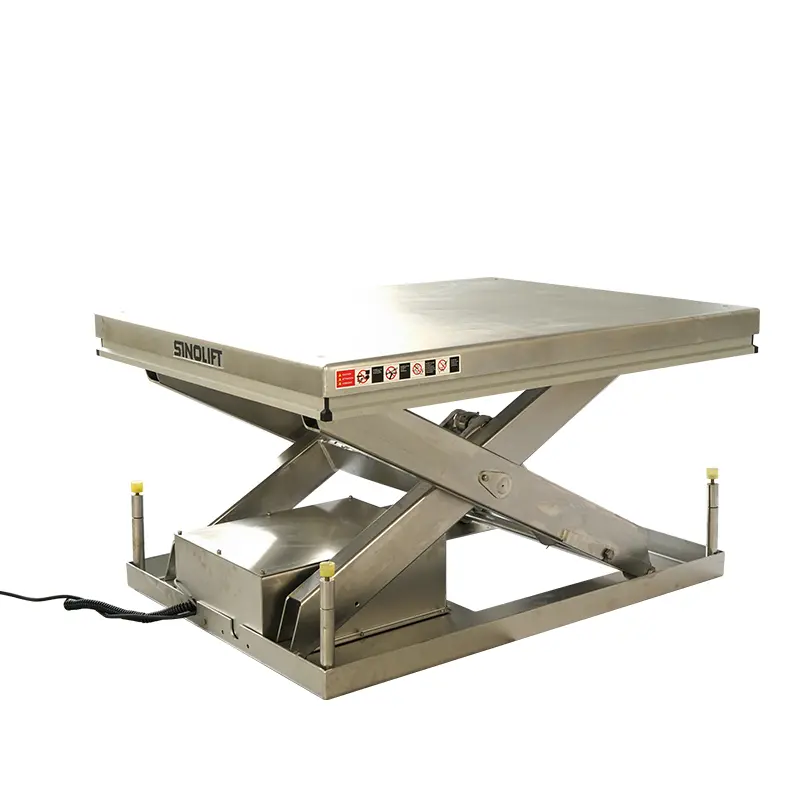

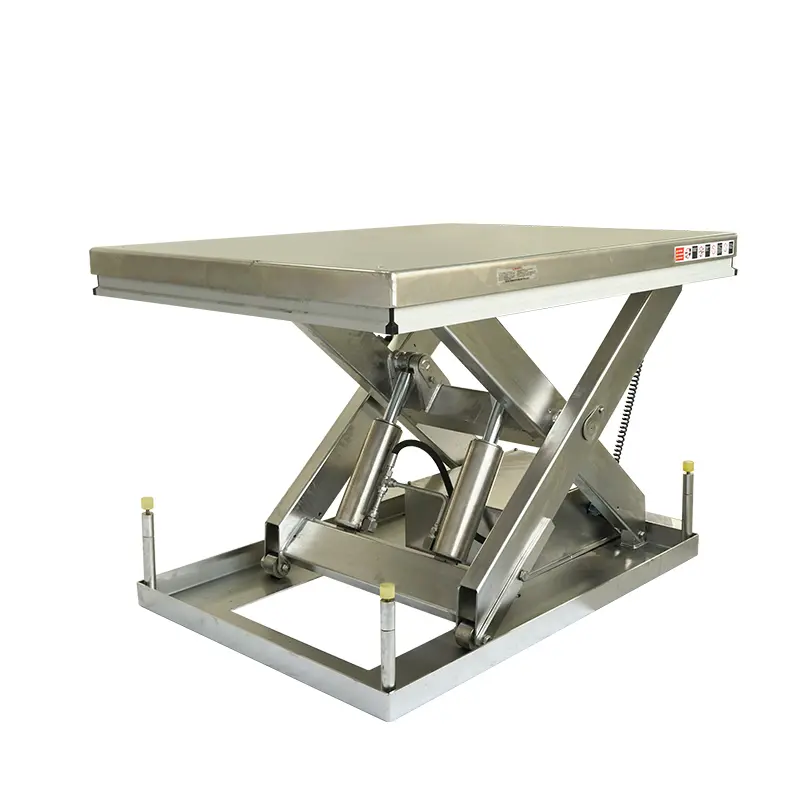

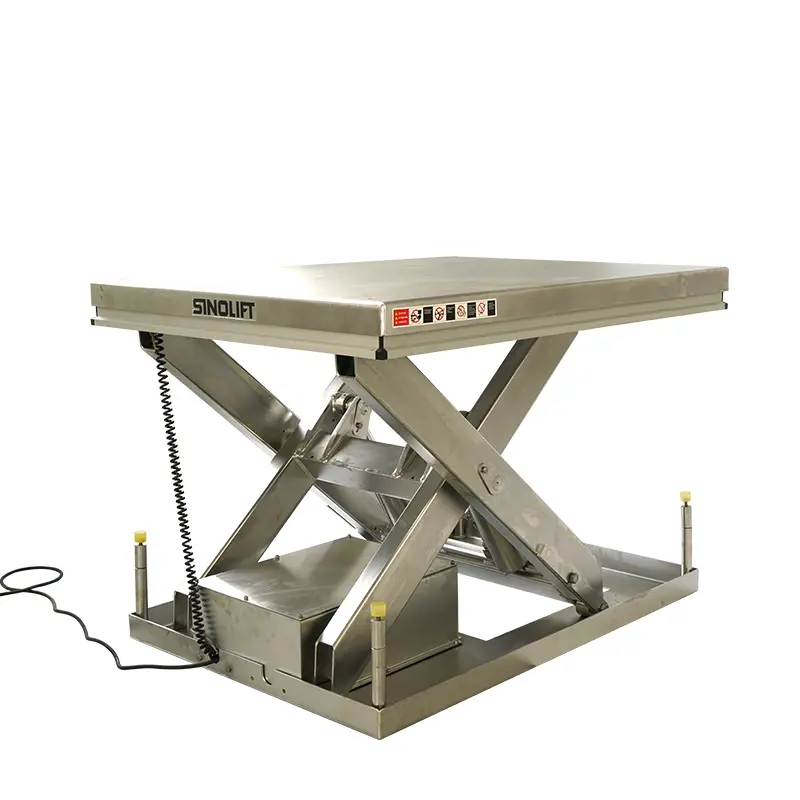

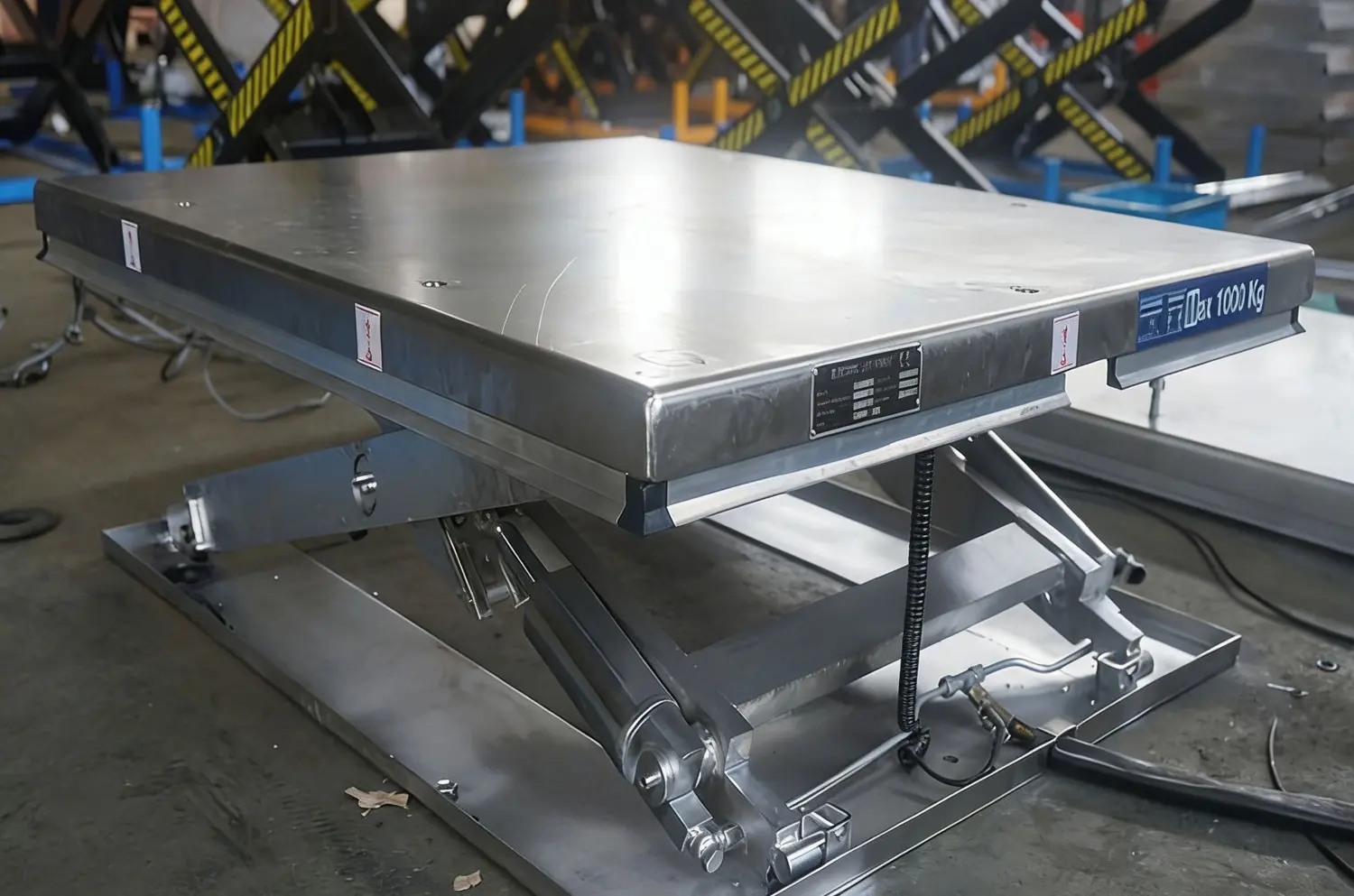

The HW-S Series uses high-quality 304 stainless steel for the tabletop and key structural components, providing excellent corrosion resistance.
It is widely used in food processing, pharmaceutical, chemical, cleanroom, and other hygienic industrial environments.
The HW-S Series includes auto anti-pinch protection, limit switch protection, a leak-proof hydraulic system, and a stable no-sway lifting structure.
Yes. The lift table adopts a new leak-proof hydraulic design with a stainless steel cylinder for improved durability and oil leakage prevention.
Yes. The electric hydraulic lifting system allows easy single-person operation.
Yes. The stainless steel construction provides excellent resistance to moisture and corrosion, making it ideal for wet and hygienic workplaces.
