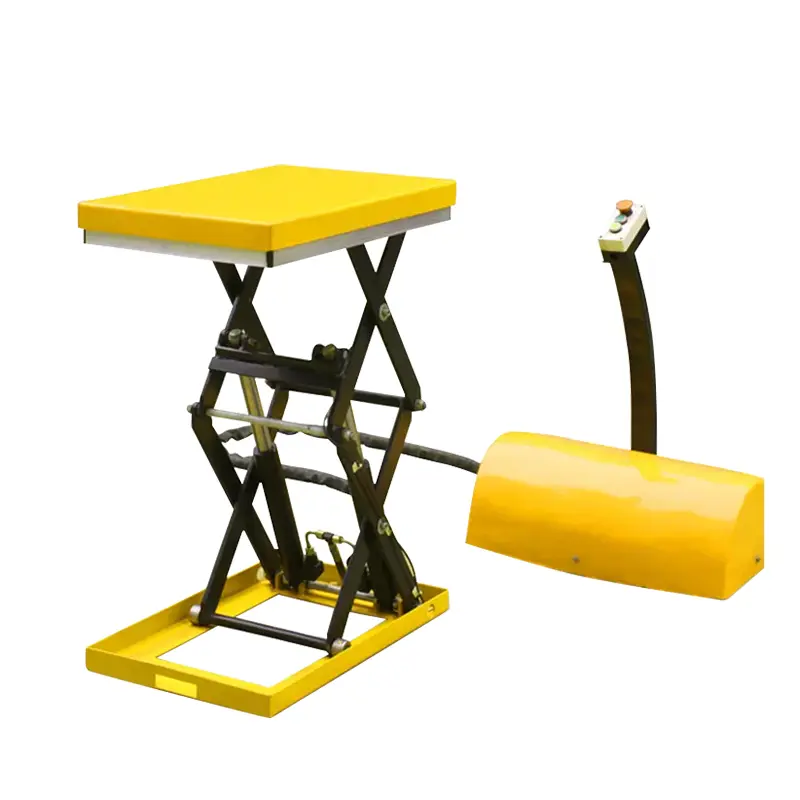

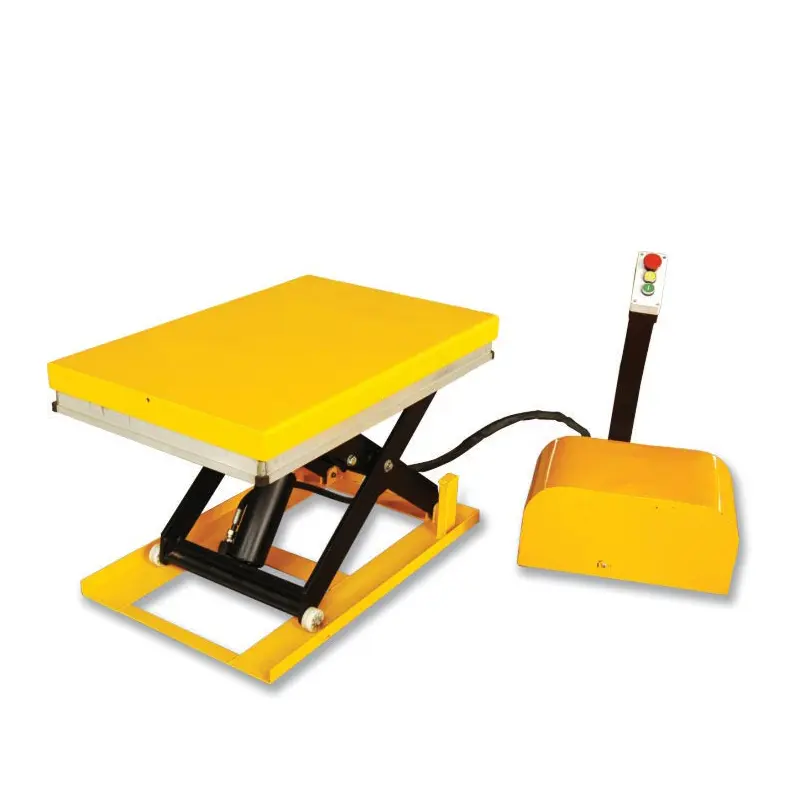

High-Quality Sinolift HZ500  Mini Electric Stationary Lift Table stationary electric lift table Factory, Factories

The HZ500 Mini Electric Stationary Lift Table is a compact and reliable hydraulic lifting solution designed for lifting small and special-size goods in workshops, warehouses, maintenance stations, and industrial applications.

Equipped with an imported high-quality hydraulic pump station, the HZ500 provides smooth, stable, and powerful lifting performance for daily material handling operations. Its compact tabletop design makes it especially suitable for motorcycle maintenance, workstation lifting, and handling limited-size cargo.

Product Description

Parameters

Model Unit HZ500 HZ1001
Capacity kg 500 1000
Lowered Height mm 162 180
Raised Height mm 950 770
Platform Size mm 916x610 610x916
Base Frame Size mm 700x450 585x896
Lift Speed sec 17-22 15-20
Power Pack - 380V/50HZ, AC 0.75kw 380V/50HZ, AC 1.1kw
Net Weight kg 98 115

Product Details

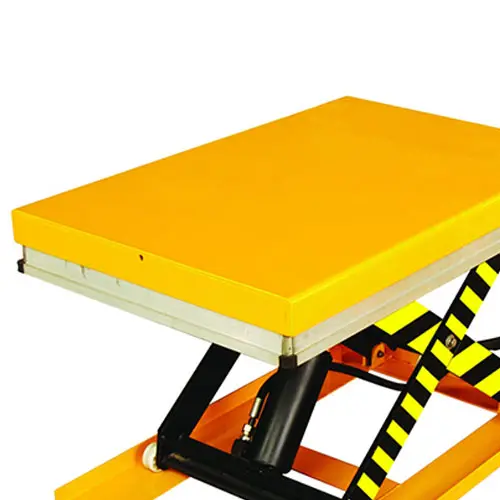

Miniature table top for special size goods
01
Miniature table top for special size goods
Emergency stop button, up button, down button
02
Emergency stop button, up button, down button

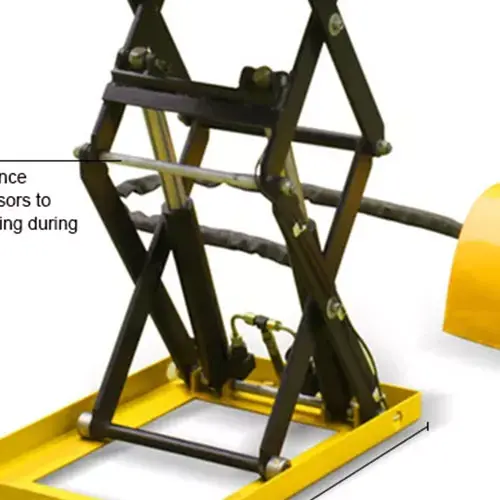

Imported high quality pump station for smooth and powerful lifting of goods
03
Imported high quality pump station for smooth and powerful lifting of goods

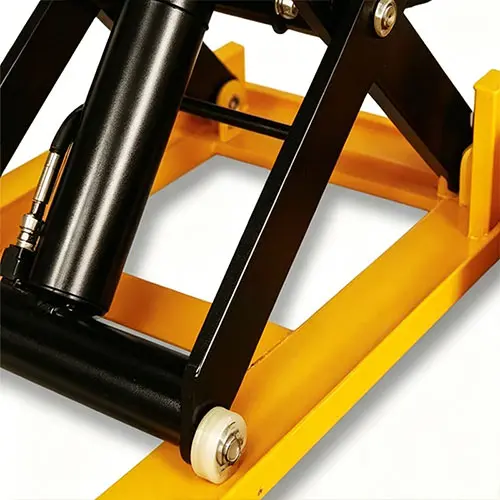

Anti-pinch shear fork design to prevent pinching
04
Anti-pinch shear fork design to prevent pinching

Media Gallery

Frequently Asked Questions (FAQ)

1. What is the HZ500 Mini Electric Lift Table used for?
The HZ500 is designed for lifting and positioning small or special-size goods in workshops, warehouses, repair stations, and industrial applications. It is also suitable for motorcycle maintenance and workstation lifting operations.
2. What type of lifting system does the HZ500 use?
The HZ500 uses an electric hydraulic lifting system with an imported high-quality pump station, providing smooth, stable, and powerful lifting performance.
3. What safety features are included?
The lift table is equipped with:
• Safety gearing device under the platform
• Anti-pinch scissor fork design
• Overload protection system
• Safety wedge for maintenance
These safety features help improve operational reliability and protect operators during lifting and lowering.
4. How does the obstacle protection system work?
When the platform descends and encounters an obstacle, the safety device underneath the table automatically stops the platform from descending further to ensure safe operation.
5. Is the HZ500 suitable for heavy industrial use?
The HZ500 is designed for light to medium-duty industrial lifting applications, especially for compact goods and workstation support.
