1 / 4

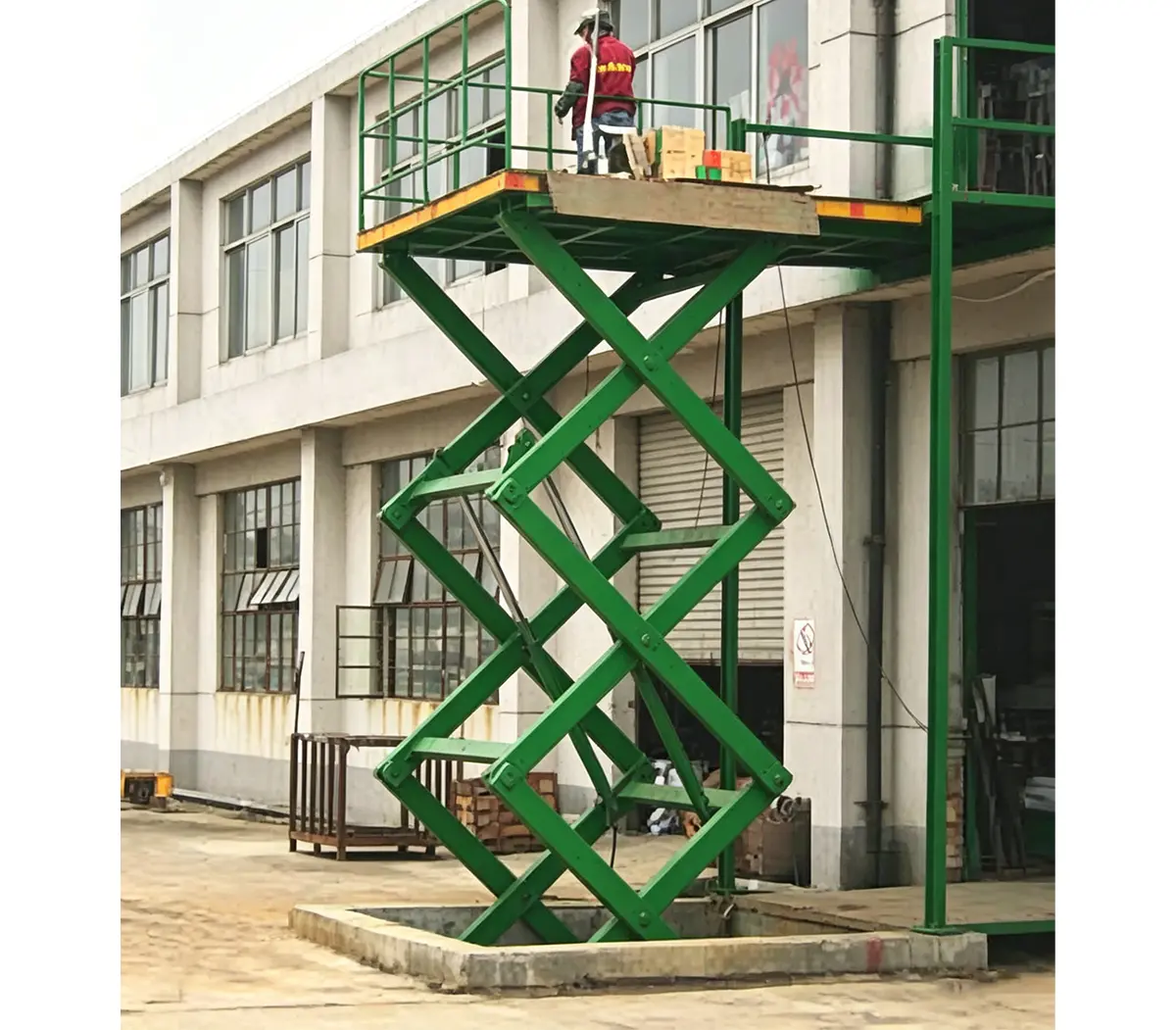

Provides safe and reliable transportation of goods between different floors and working levels.
The hydraulic system ensures smooth lifting, stable lowering, and reliable heavy-load operation.
Supports multi-point operation from platform and floor control stations for convenient use.
An ideal alternative to freight elevators for low-rise buildings and industrial facilities.
| Stationary Cargo-lifts | ||||||||
| Double Scissors | ||||||||
| Model | Rated Capacity | Min. Height | Lifting Height | Max. Height | Table Size | Elevating time | Motor | Total Weight |
| Q | H1 | H2 | H3 | LxW | ||||
| (t) | (mm) | (mm) | (mm) | (mm) | (s) | (kw) | (kg) | |
| SJG2-3.8 | 2 | 640 | 3800 | 4440 | 2800×2000 | 102 | 3 | 2500 |
| SJG2-5 | 2 | 700 | 5000 | 5700 | 4500×2200 | 62 | 5.5 | 4000 |
| SJG2.5-4.4 | 2.5 | 700 | 4400 | 5100 | 3200×2000 | 51 | 7.5 | 3400 |
| SJG2.5-7.2 | 2.5 | 830 | 7200 | 8030 | 5200×2500 | 95 | 7.5 | 8800 |
| SJG4.5-3.5 | 4.5 | 760 | 3500 | 4260 | 4000×2000 | 50 | 5.5 | 4500 |
| SJG5-5.4 | 5 | 830 | 5400 | 6230 | 5200×2500 | 95 | 7.5 | 8000 |
| SJG3-7.2 | 3 | 1050 | 7200 | 8250 | 3400×1500 | 117 | 7.5 | 5500 |
| Multi-Scissors | ||||||||
| SJG0.5-5 | 0.5 | 850 | 5000 | 5850 | 2000×1000 | 47 | 2.2 | 1200 |
| SJG1-3.3 | 1 | 840 | 3300 | 4140 | 1900×1500 | 30 | 3 | 1300 |
| SJG1-5 | 1 | 1000 | 5000 | 6000 | 2000×1200 | 54 | 3 | 1600 |
| SJG1.5-6.5 | 1.5 | 1060 | 6500 | 7560 | 3300×2200 | 83 | 5.5 | 4200 |
| SJG2-3.5 | 2 | 1000 | 3500 | 4500 | 2200×1500 | 75 | 2.2 | 1800 |
| SJG2-6 | 2 | 1300 | 6000 | 7300 | 2400×1600 | 62 | 5.5 | 2900 |
| SJG2-9 | 2 | 1520 | 9000 | 10520 | 3000×1500 | 100 | 5.5 | 3500 |
| SJG2.5-6 | 2.5 | 1050 | 6000 | 7050 | 3200×2500 | 77 | 7.5 | 5370 |
| SJG3-7.2 | 3 | 1050 | 7200 | 8250 | 3400×1500 | 117 | 7.5 | 5500 |
It is used for transporting goods safely between different floors, working levels, and loading areas.
Yes. Platform dimensions, lifting height, load capacity, and control systems can all be customized to meet specific requirements.
The platform includes overload protection, hydraulic fall protection, stable lowering control, and emergency safety systems.

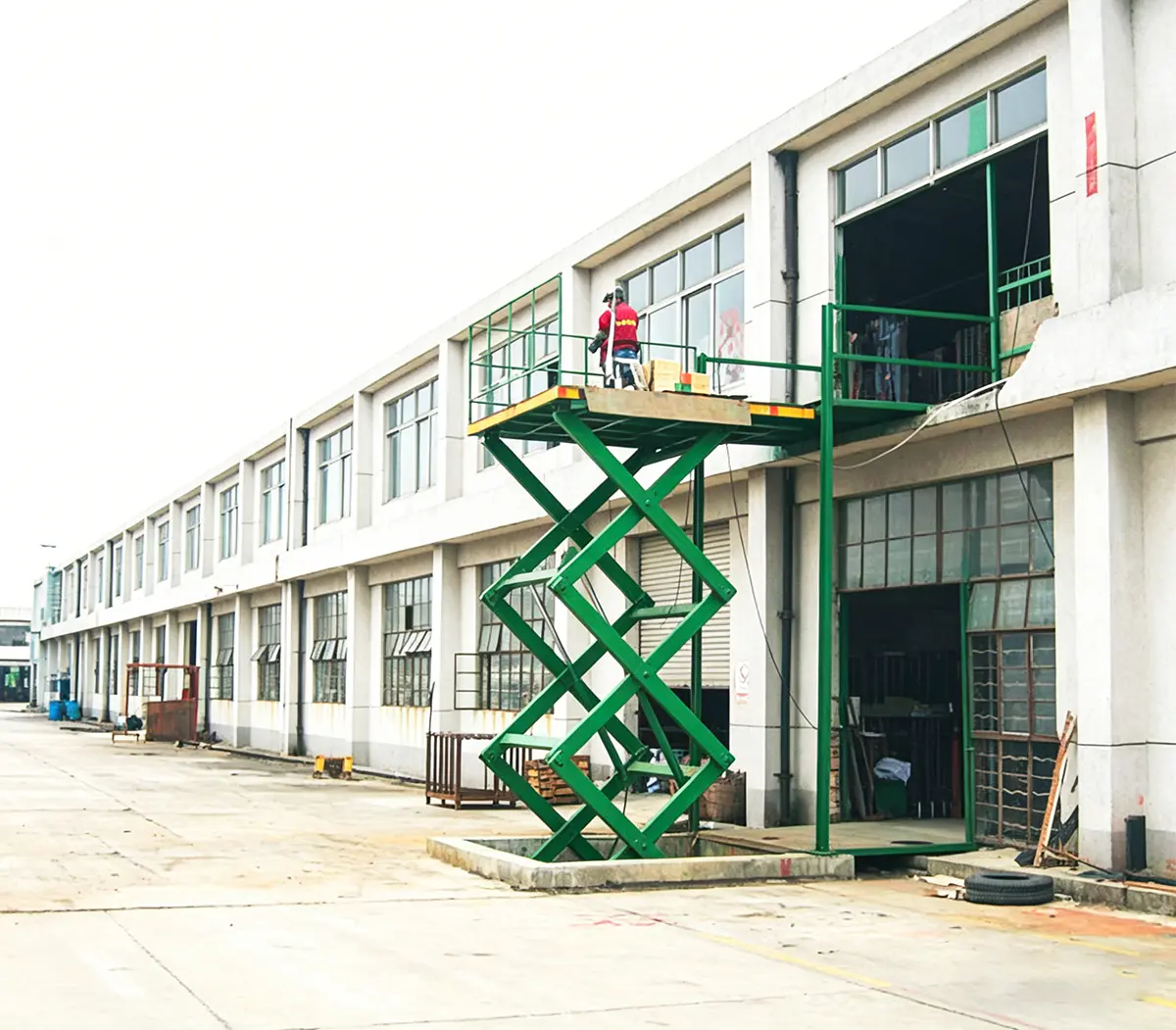

It can be installed in warehouses, factories, garages, logistics centers, workshops, and industrial buildings.
Yes. It is an economical and practical alternative to traditional freight elevators for low-rise industrial applications.
