The hydraulic system delivers smooth lifting and controlled lowering for safe industrial operation.

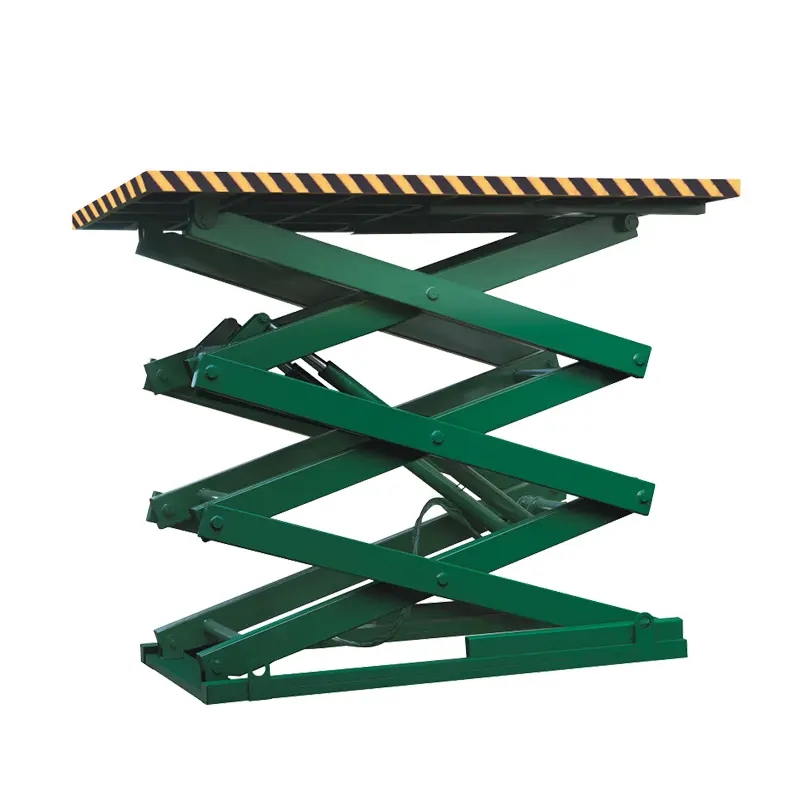

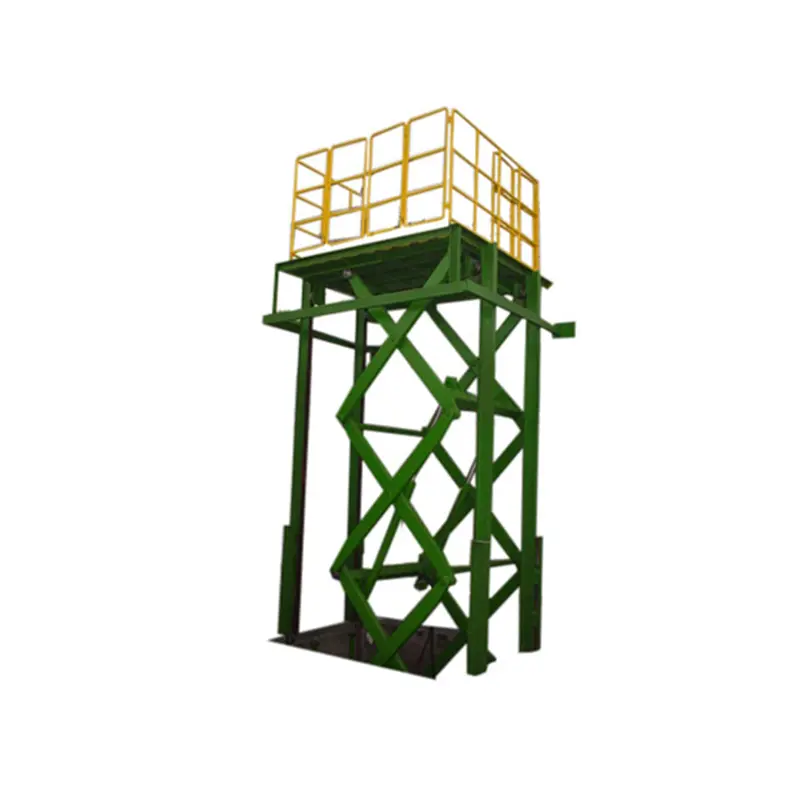

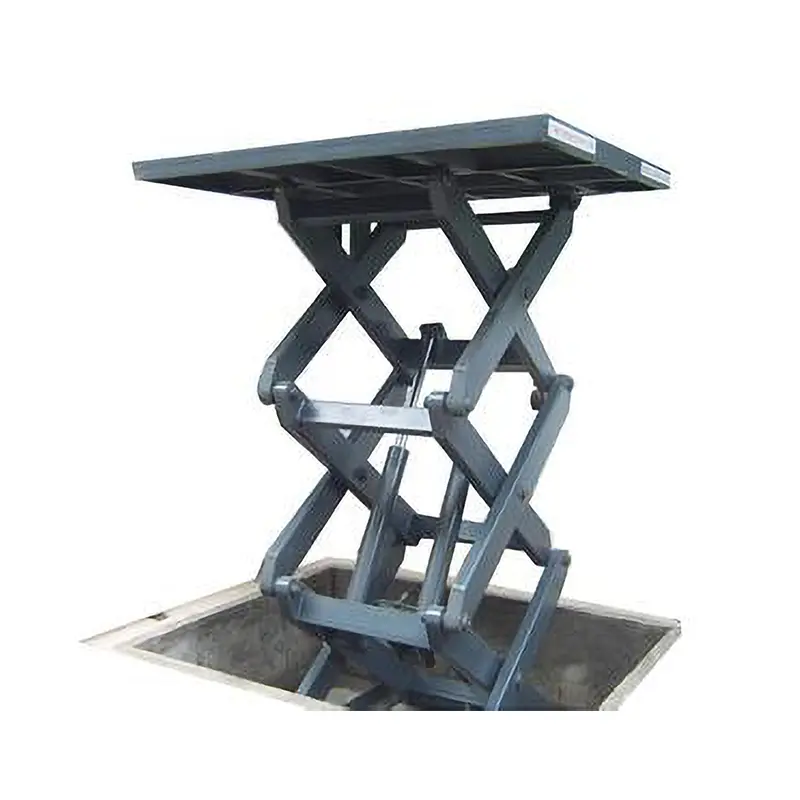

Reinforced steel frame and scissor arms ensure excellent durability and load capacity.
Helps reduce manual handling effort and improves workflow efficiency in loading and assembly operations.

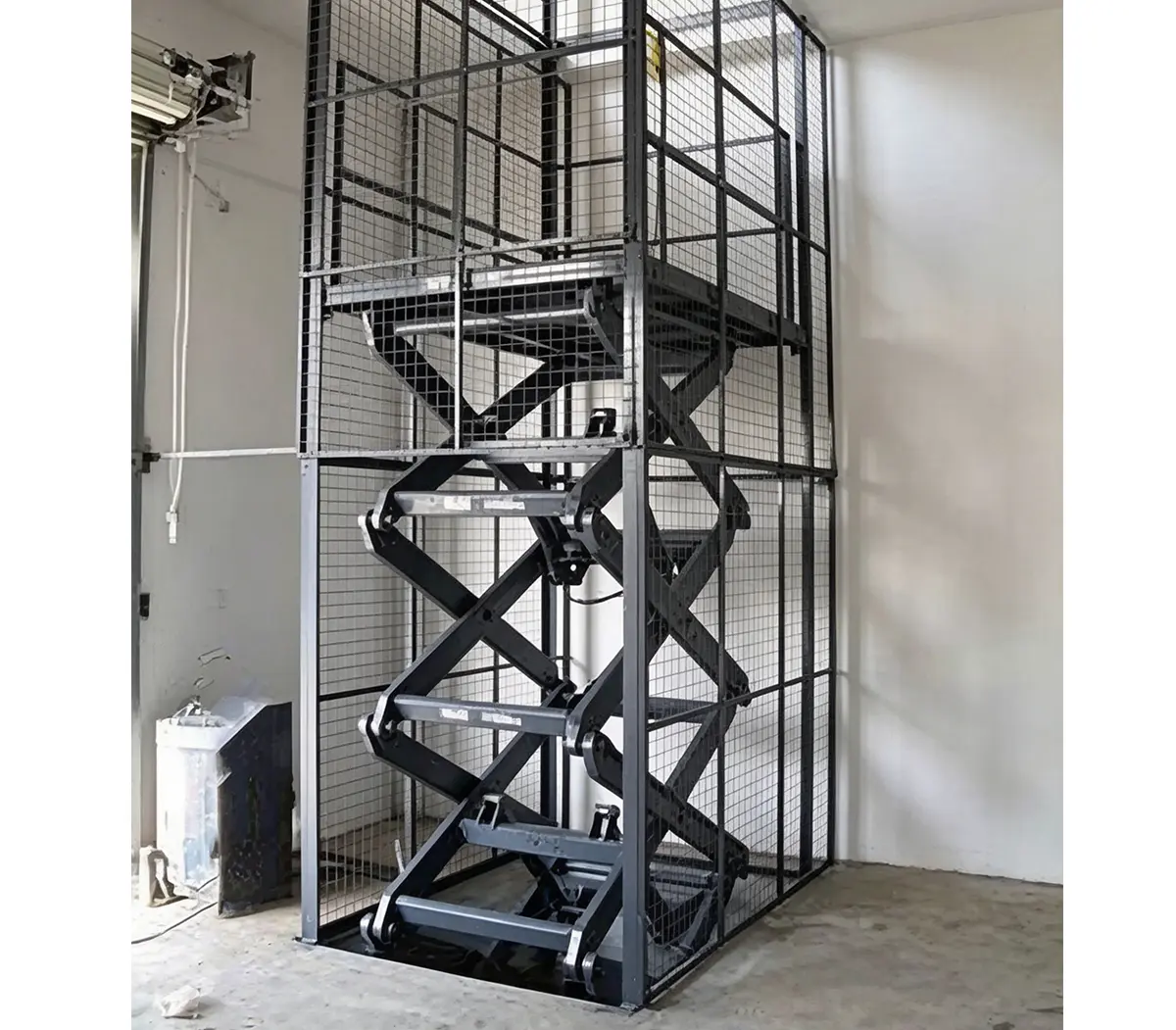

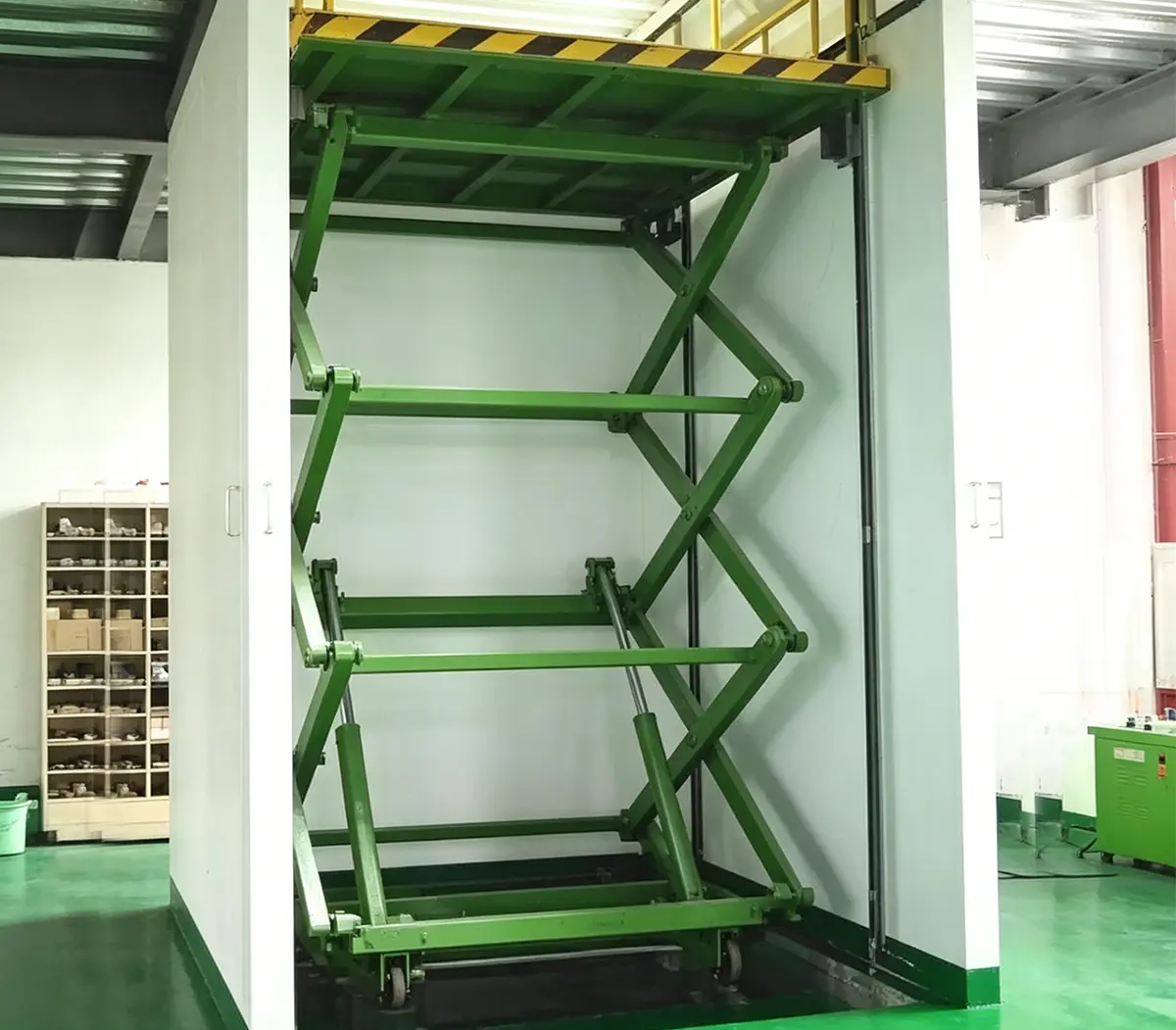

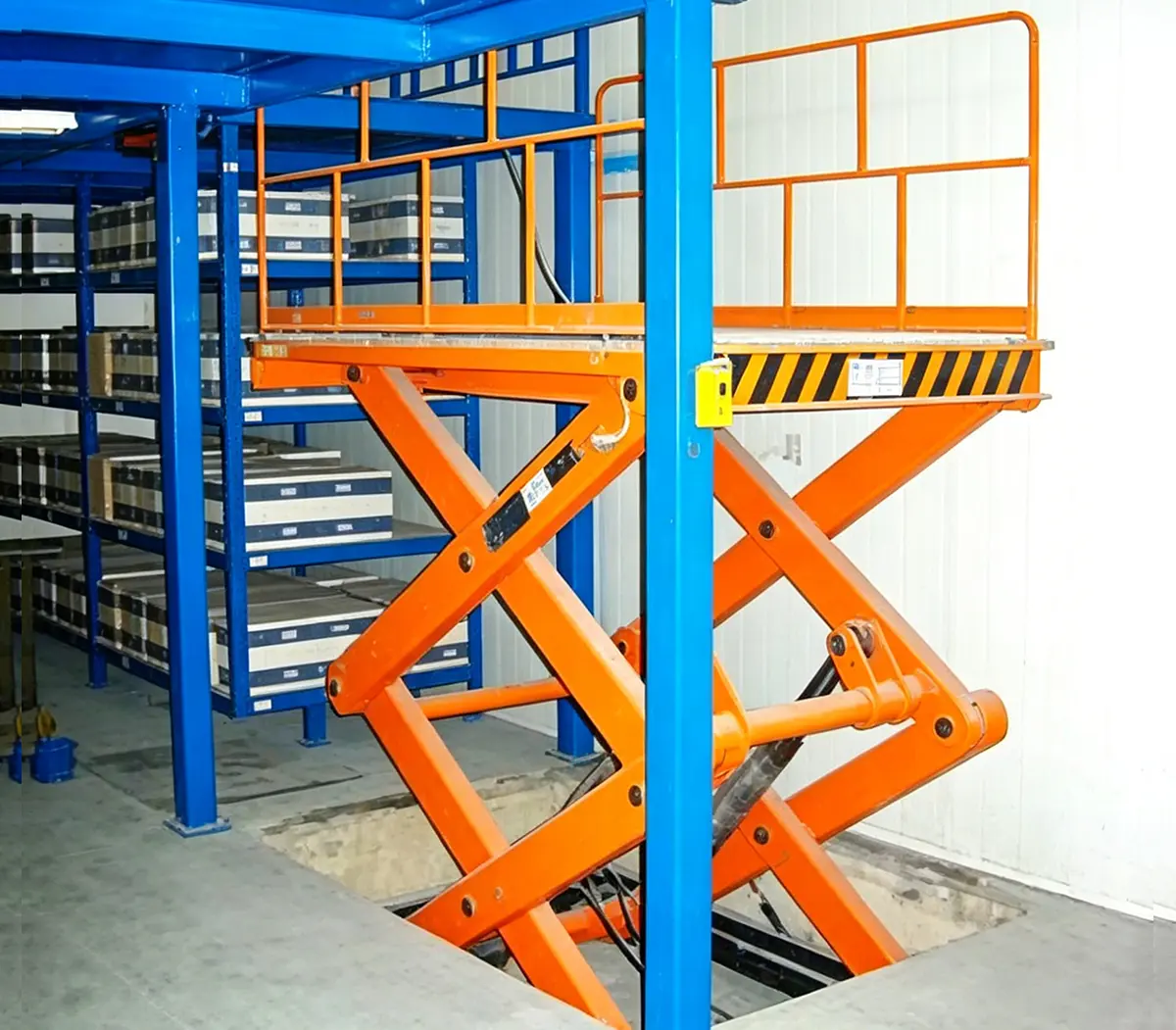

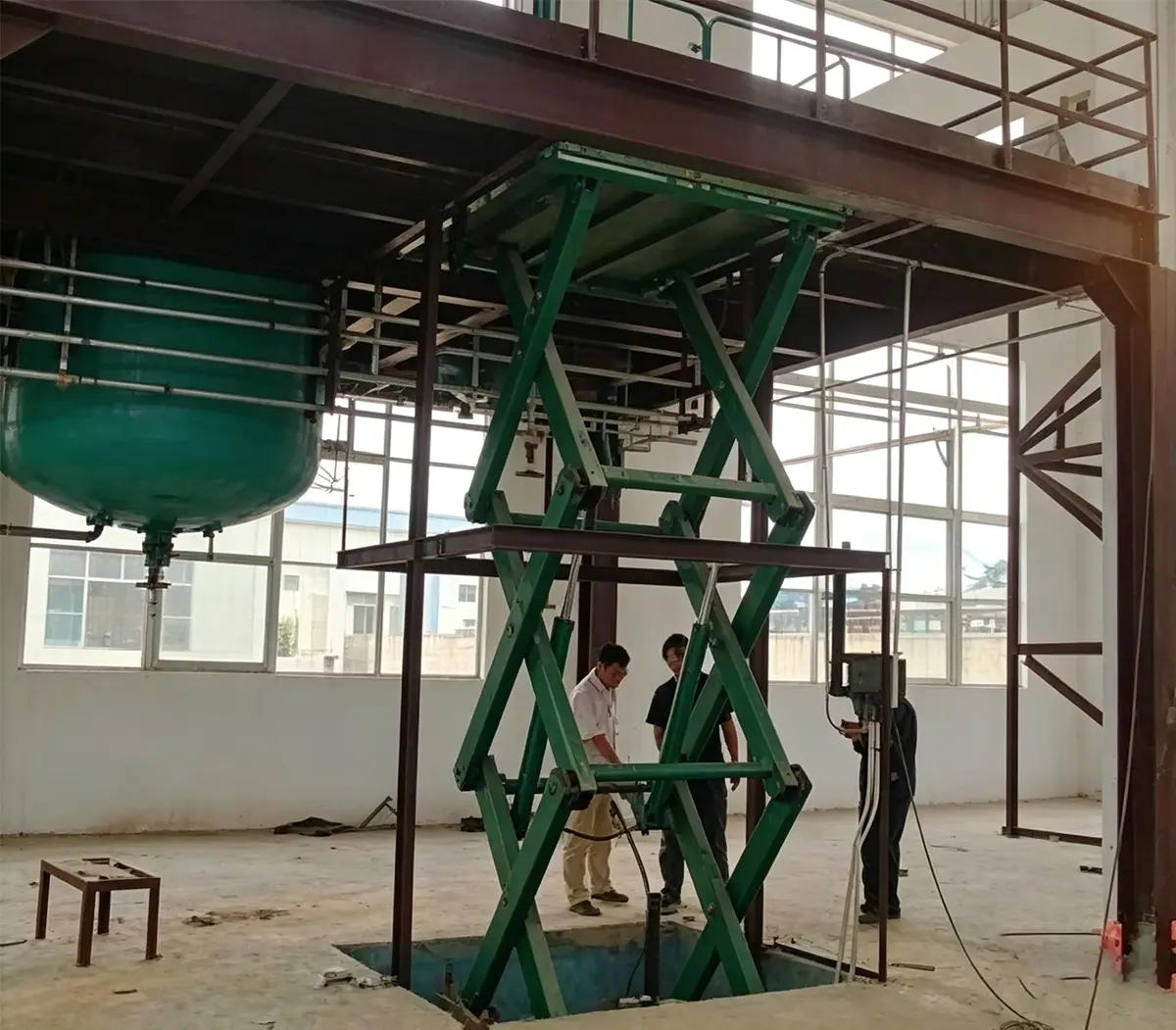

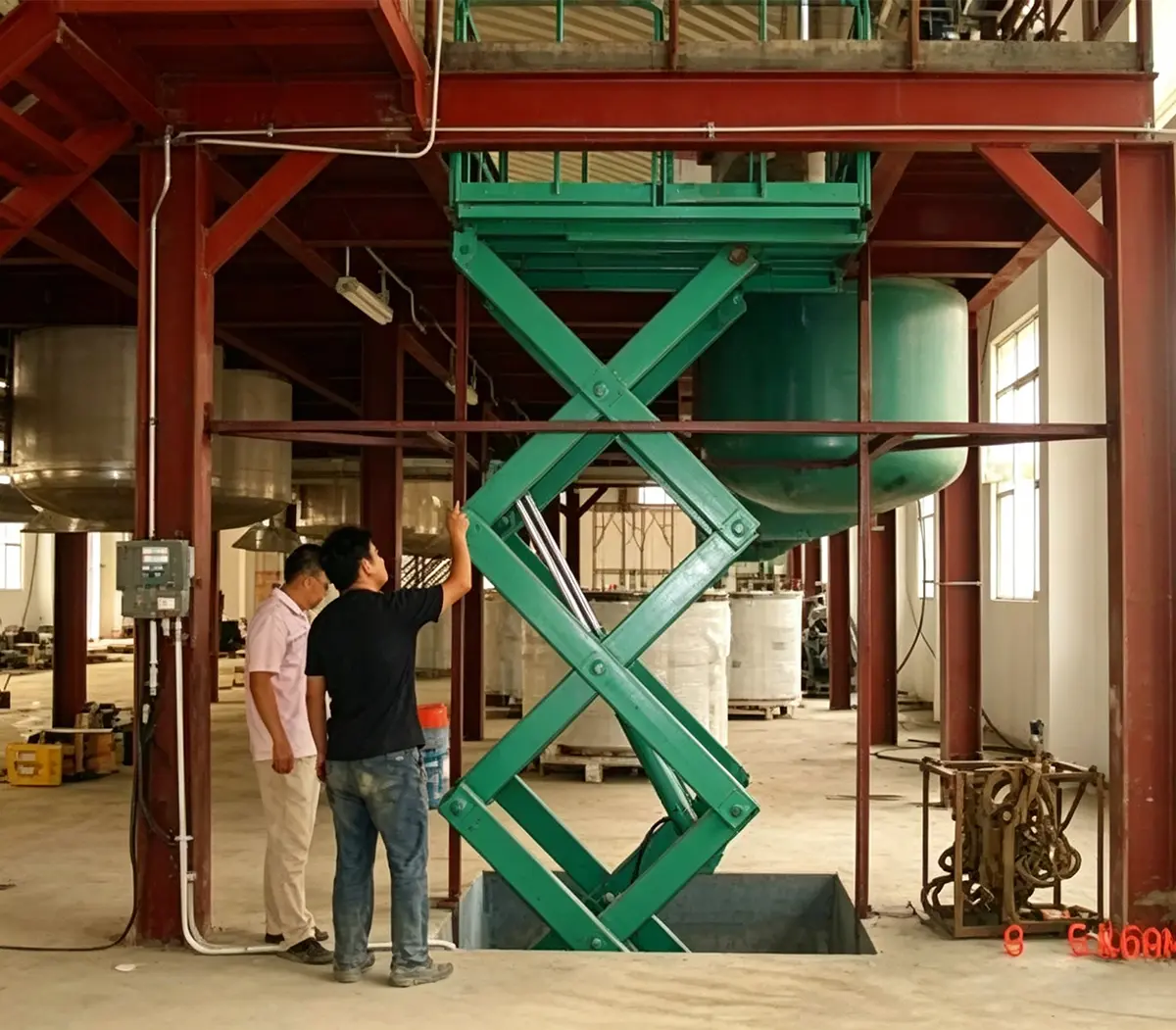

Suitable for warehouses, production lines, logistics centers, and industrial lifting systems.
| Model | Rated capacity (kg) | Lifting height (H2) (mm) | Raised Height (H2+H1) (mm) | Low height (H1) (mm) | Platform size (L*B) (mm) | Elevating time (s) | Motor Power (kw) | Total Weight (Kg) |
|---|---|---|---|---|---|---|---|---|
| Single fork frame | ||||||||
| SJG1-1.7 | 1000 | 1700 | 2160 | 460 | 2500*2000 | 30 | 2.2 | 1200 |
| SJG2-1.7 | 2000 | 2180 | 480 | 2500*2000 | 3.7 | 1400 | ||
| SJG3-1.7 | 3000 | 2180 | 480 | 2500*2000 | 3.7 | 160000 | ||
| SJG5-1.7 | 5000 | 2280 | 580 | 2800*2000 | 7.5 | 2000 | ||
| SJG10-1.7 | 1000 | 2500 | 800 | 4000*2200 | 7.5 | 3000 | ||
| Double forks frame | ||||||||
| SJG1-3 | 1000 | 3000 | 3540 | 540 | 2300*2000 | 30 | 2.2 | 1300 |
| SJG2-3 | 2000 | 3600 | 600 | 3.7 | 1600 | |||
| SJG3-3 | 3000 | 3600 | 600 | 3.7 | 1800 | |||
| Multi-forks fords frame | ||||||||
| SJG1-4 | 1000 | 4000 | 4680 | 680 | 2000*2000 | 40 | 2.2 | 1500 |
| SJG2-4 | 2000 | 4740 | 740 | 3.7 | 1800 | |||
| SJG3-4 | 3000 | 4800 | 800 | 5.5 | 2000 | |||
| SJG1-5 | 1000 | 5000 | 5800 | 800 | 2000*2000 | 60 | 2.2 | 1700 |
| SJG2-5 | 2000 | 5880 | 880 | 3.7 | 2100 | |||
| SJG3-5 | 3000 | 5960 | 960 | 5.5 | 2500 | |||
| SJG1-6 | 1000 | 6000 | 7020 | 1020 | 2000*2000 | 70 | 3.7 | 2000 |
| SJG2-6 | 2000 | 7120 | 1120 | 5.5 | 2500 | |||
| SJG3-6 | 3000 | 7120 | 1120 | 5.5 | 3000 | |||
| SJG1-9 | 1000 | 9000 | 10280 | 1280 | 2500*2000 | 100 | 5.5 | 3500 |
| SJG2-9 | 2000 | 10520 | 1520 | 120 | 7.5 | 4800 | ||
| Many double fork | ||||||||
| SJG4-4 | 4000 | 4000 | 4740 | 740 | 4500*2000 | 50 | 5.5 | 3500 |
| SJG4-5 | 4000 | 5000 | 5880 | 800 | 6000*2200 | 60 | 5.5 | 4000 |
| SJG5-5.5 | 5000 | 5500 | 6380 | 880 | 6000*2200 | 60 | 7.5 | 5000 |
A: It is mainly used for lifting, positioning, loading, unloading, and transferring industrial materials and pallets.
A: The platform uses a hydraulic lifting system powered by an electric motor and hydraulic cylinders.
A: Yes. The reinforced steel structure is designed for industrial heavy-load applications.
A: Yes. Platform size, lifting height, and load capacity can be customized according to customer requirements.
A: It is widely used in warehouses, factories, logistics centers, assembly workshops, and manufacturing environments.
