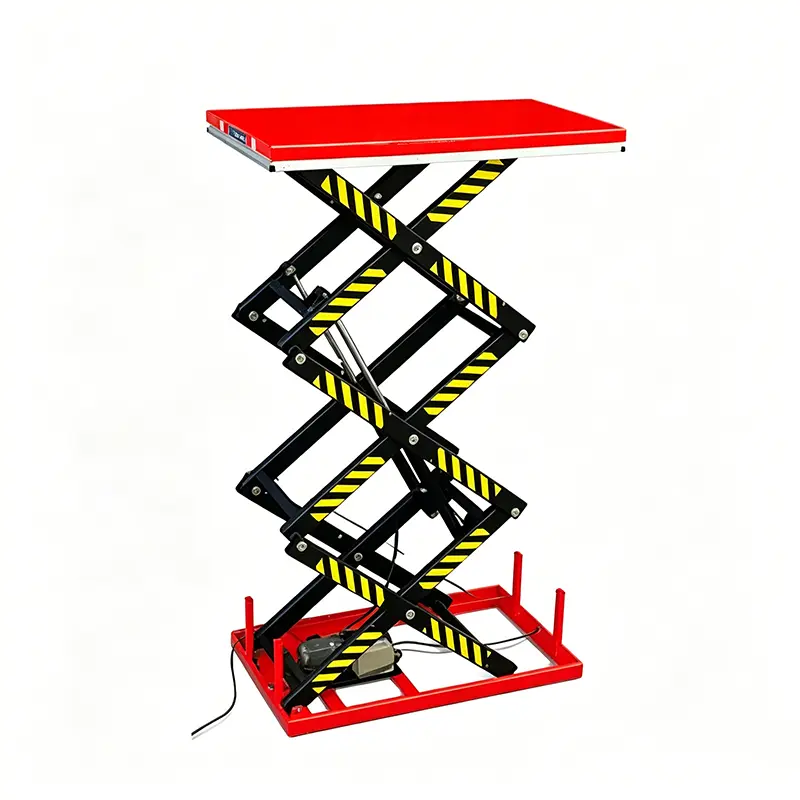

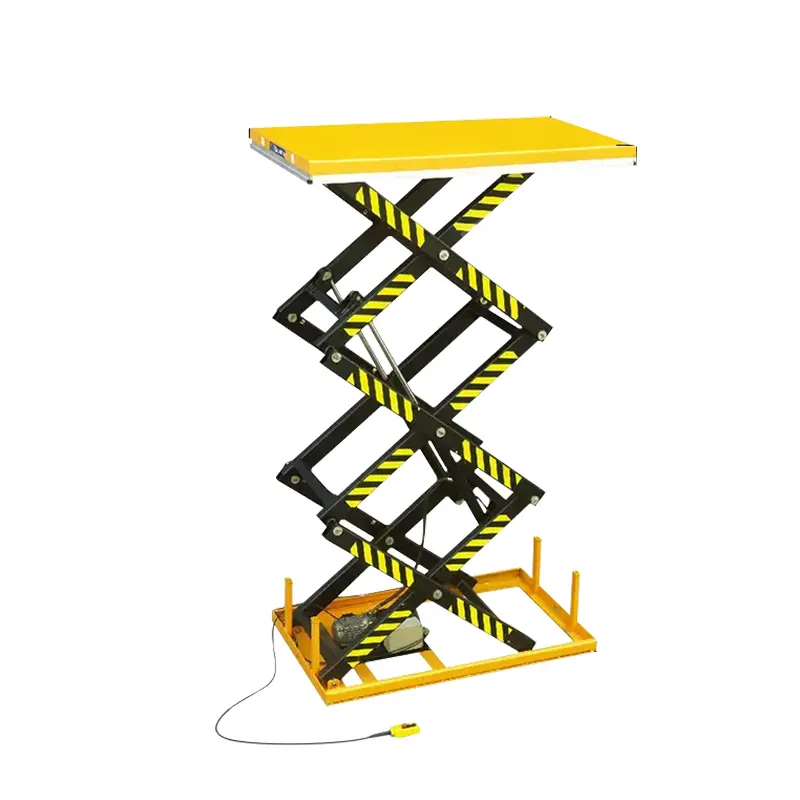

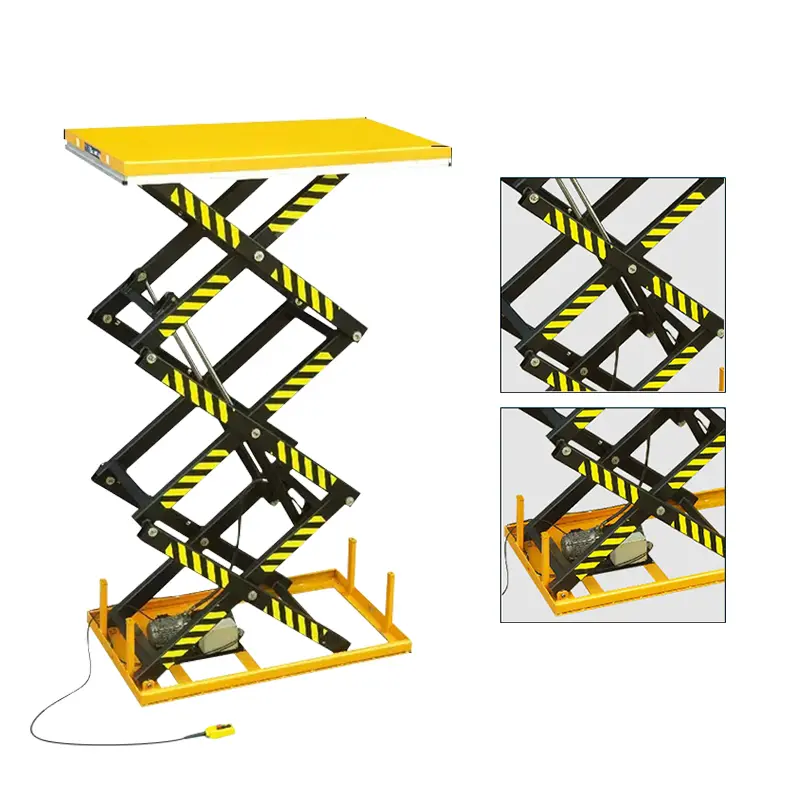

The HT Series Triplex Scissors Electric Stationary Lift Table is a heavy-duty hydraulic lifting platform designed for applications requiring extra-high lifting height and stable vertical lifting performance.

Featuring a triplex (three-stage) scissor structure, the HT lift table provides significantly higher lifting travel compared with standard single or double scissor lift tables, making it ideal for industrial production lines, cargo positioning, warehouse loading operations, and ergonomic material handling.

Product Description

Parameters

Model - HT1000 HT2000
Type - three-scissor
Capacity Kg 1000 2000
Lowered Height mm 470 560
Raised Height mm 3000 3000
Platform Size mm 1700x1000 1700x1000
Base Frame Size mm 1600x1000 1606x1010
Lift Time (sec) 35-45 50-60
Net Weight kg 450 750

Product Details

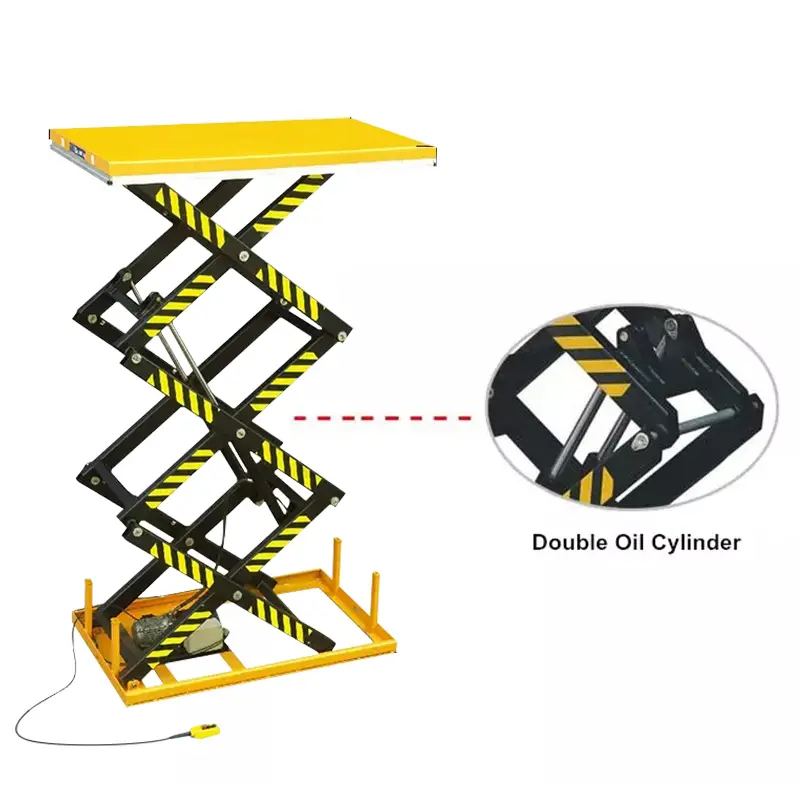

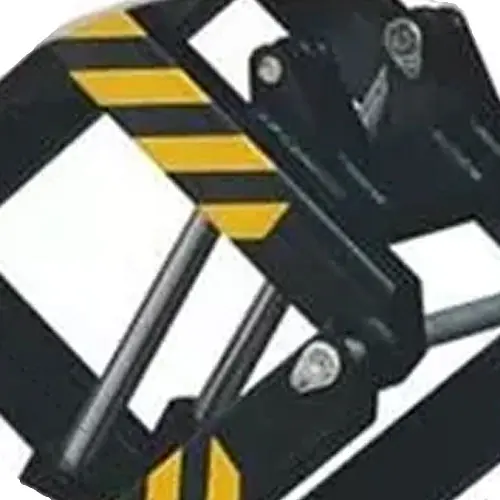

Double oil cylinder
01
Double oil cylinder

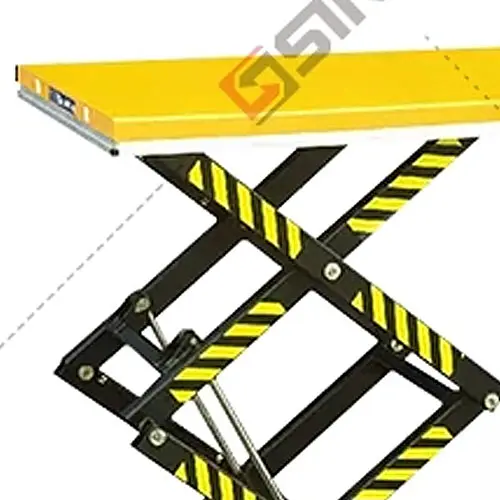

Heavy duty design
02
Heavy duty design

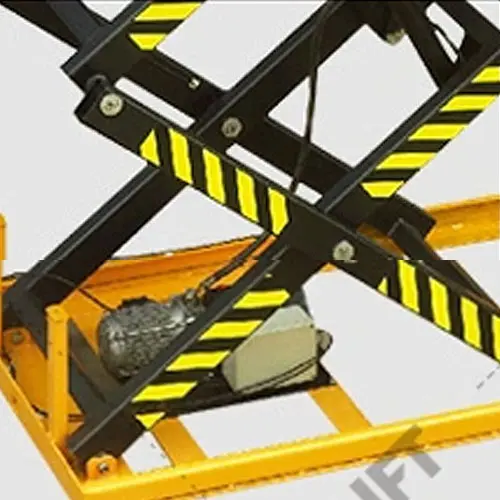

Internal power pack equipped with relief value
03
Internal power pack equipped with relief value

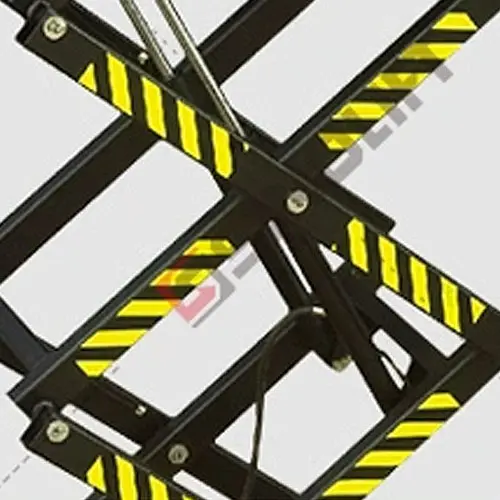

Upper platform lifted with aluminum safety bar
04
Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions

Media Gallery

Frequently Asked Questions

1. What is the advantage of a triplex scissors lift table?
A triplex scissors lift table provides much higher lifting height and better vertical lifting range compared with single or double scissor lift tables.
2. What industries is the HT Series suitable for?
The HT Series is suitable for warehouses, factories, logistics centers, industrial production lines, maintenance workshops, and automated material handling systems.
3. What power system does the lift table use?
The HT Series uses an electric hydraulic lifting system for stable and efficient lifting operations.
4. Is the lift table suitable for heavy-duty applications?
Yes. The reinforced steel structure and hydraulic lifting system are designed for industrial heavy-duty operations.
5. What safety protections are included?
The platform may include: Emergency stop button, Overload protection, Anti-clamping protection, Safety maintenance support, and a Stable hydraulic lowering system.
6. Can the lift table be customized?
Yes. Platform dimensions, lifting height, load capacity, voltage, and control systems can usually be customized according to customer requirements.
