The primary difference is the vertical travel height vs. footprint ratio. A single scissor lift is ideal for high tonnages at low-to-medium elevations (like loading docks). A multi-stage lift stacks four tiers of scissor arms vertically, allowing it to reach significantly higher levels (typically 4 to 8+ meters) without requiring a larger ground footprint, making it perfect for multi-story cargo transport.

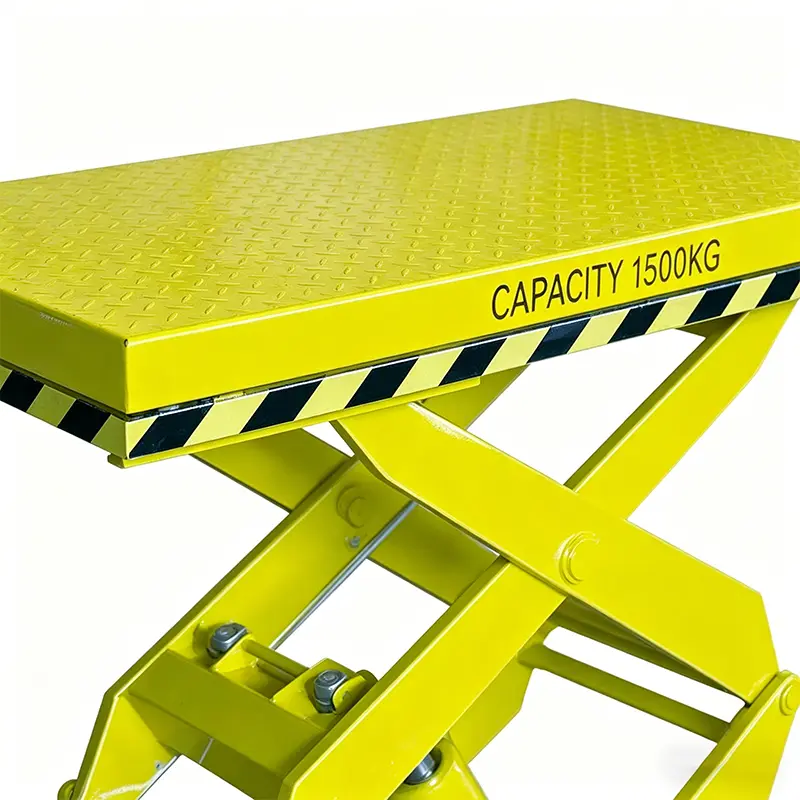

While it can be installed directly on the ground (using an external ramp), a concrete pit installation is highly recommended. Because a 4-tier scissor mechanism has a taller collapsed height than a single scissor model, mounting it inside a pit allows the anti-slip platform to sit perfectly flush with your factory or warehouse floor when fully lowered, enabling forklifts and pallet jacks to roll cargo on and off seamlessly.

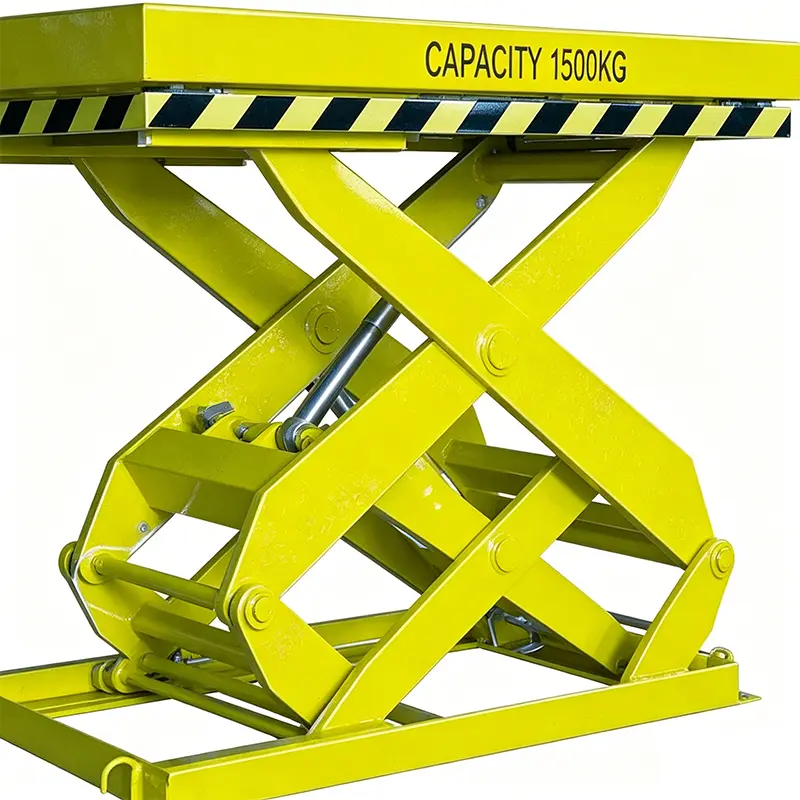

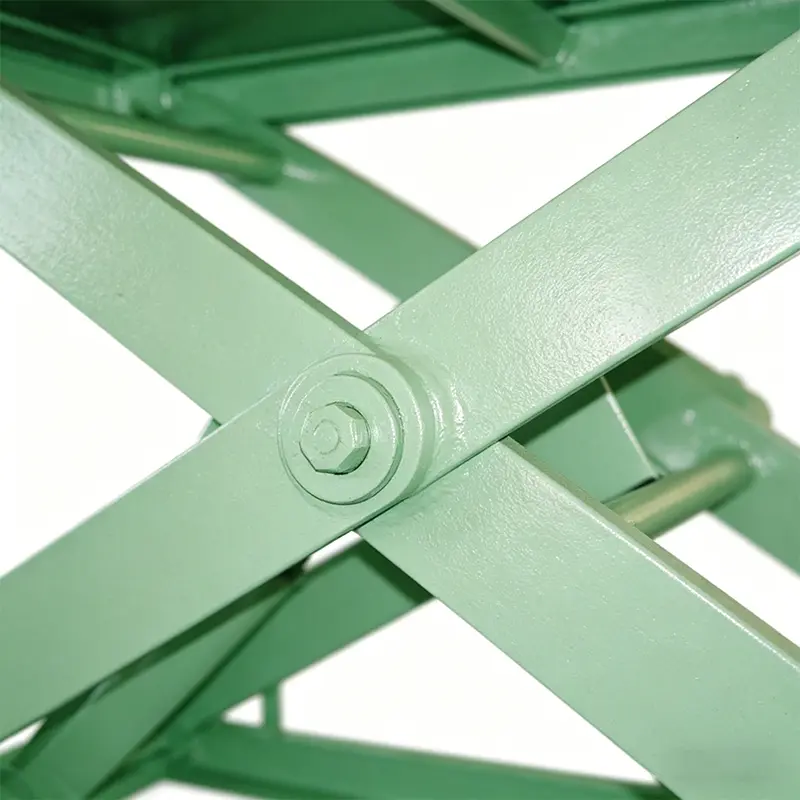

The lift is engineered with high-strength structural steel/manganese steel arms and precision-aligned pivot joints to eliminate side-to-side sway. Additionally, the heavy-duty base frame features vertical guide rails and stabilizer posts to ensure that the lifting and lowering path remains perfectly linear, rigid, and stable even at maximum extension under full rated capacity.

The platform relies on a multi-tiered mechanical and hydraulic safety network:

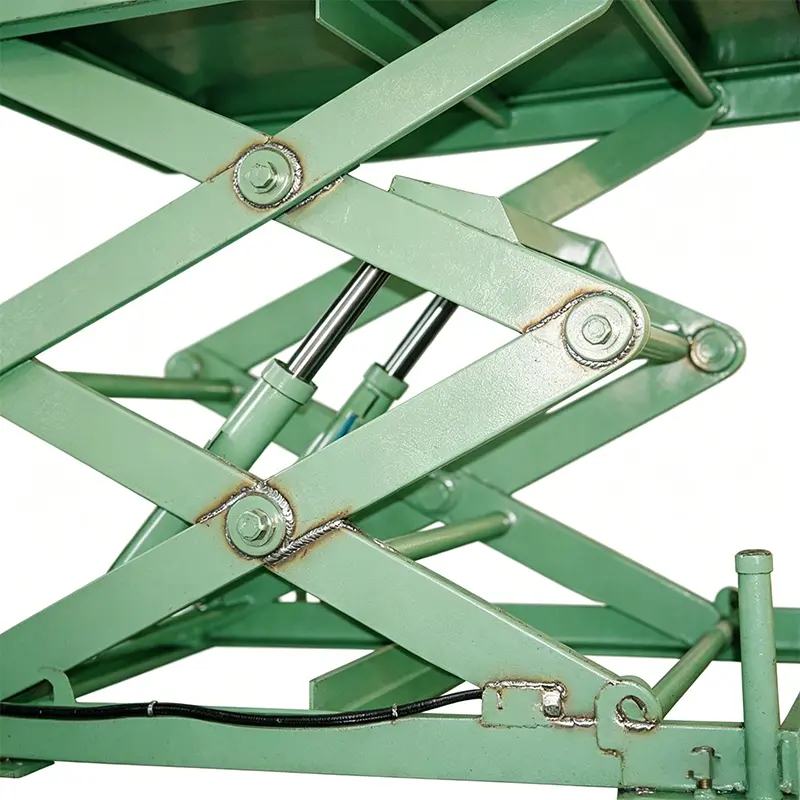

• Explosion-Proof Valves (Velocity Fuses): Integrated directly into the hydraulic cylinders, these valves instantly lock the fluid inside the cylinders if they detect a sudden drop in pressure or a pipe rupture, freezing the platform safely in place.
• Mechanical Travel Limits: Heavy-duty limit switches automatically shut off the motor once the lift reaches its designated floor level, preventing mechanical over-travel.
• Emergency Stop: Every control panel is equipped with an instant emergency stop button that halts all hydraulic movement immediately.

Yes. The system uses a hierarchical multi-point electrical control architecture (often built with premium components like Siemens or Schneider). Control panels or call buttons can be installed at each distinct mezzanine dock or building floor, allowing operators on any level to safely call, send, and accurately stop the lift platform at pre-set elevation points.
